Acoustic Signature MCX4

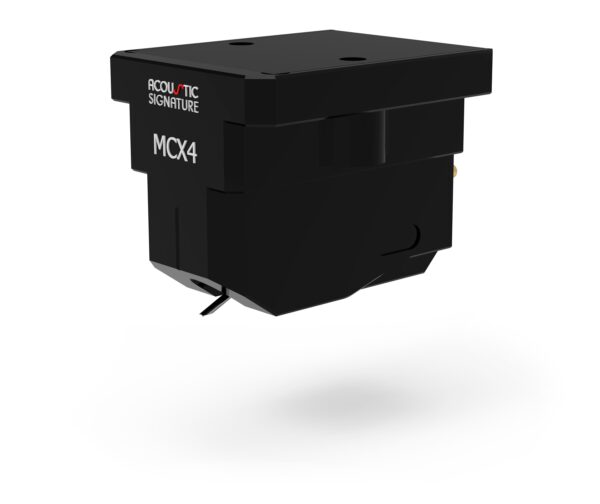

Acoustic Signature MCX4 Cartridge

0% Financing Available for 48 Months!!

The Acoustic Signature MCX4 is our flag­ship! This modern moving-coil cart­ridge is manu­fac­tured accor­ding to the latest tech­no­logies – the opti­mal part­ner for our NEO tone­arm series.

Product Description

Acoustic Signature MCX4 Cartridge

Price: $2,995.00

0% Financing Available for 48 Months!!

The Acoustic Signature MCX4 is our flag­ship! This modern moving-coil cart­ridge is manu­fac­tured accor­ding to the latest tech­no­logies – the opti­mal part­ner for our NEO tone­arm series. A ‘nude’ Shibata stylus assu­ring perfect tracking results, gold-plated coils made of oxygen-free cop­per and a CNC-milled and reso­nance-opti­mized chassis deve­loped accor­ding to the finite ele­ment design princi­ple form the basis for an abso­lute top-class cartridge.

Special features:

•  Modern MC cartridge with gold-plated, oxygen-free copper coils
•  Reso­nance-opti­mized alumi­num chassis
•  Easy mounting
•  Excellent tracking due to nude Shibata stylus
•  Suitable for medium to high mass tonearms

The perfect partner for the new NEO series
The Trio MCX4, TA-7000 NEO and Montana NEO. The MCX4 is our flagship and plays perfectly with the Acoustic Signa­ture NEO series: 9 new turn­tables and 6 new tonearms.

Technical Data

CharacteristicFeature
Cartridge system:Moving-coil
Stylus type:Nude Shibata
Coil material:Gold-plated, oxygen-free copper coils
Cartridge chassis:Resonance-optimized aluminum chassis
Voltage output (at 1 kHz, 5 cm/sec.):0.3 mV
Channel balance at 1 kHz:< 1.0 dB
Channel separation at 1 kHz:> 26 dB
Compliance, dynamic, lateral:15 μm/mN
Tracking force range:2.1 to 2.5 g
Recommended tracking force:2.3 g (23 mN)
Frequency range at -3 dB:20-25,000 Hz
Frequency response 20-20,000 Hz:± 1.5 dB
DC resistance:5 Ω
Recommended load:100 Ω
Cartidge weight:12.6 g



Reviews

There are no reviews yet.

Be the first to review “Acoustic Signature MCX4”

Acoustic Signature MCX4 Cartridge
Specifications

Cartridge system: Moving-coil
Stylus type: Nude Shibata
Coil material: Gold-plated, oxygen-free copper coils
Cartridge chassis: Resonance-optimized aluminum chassis
Voltage output (at 1 kHz, 5 cm/sec.): 0.3 mV
Channel balance at 1 kHz: < 1.0 dB Channel separation at 1 kHz: > 26 dB
Compliance, dynamic, lateral: 15 μm/mN
Tracking force range: 2.1 to 2.5 g
Recommended tracking force: 2.3 g (23 mN)
Frequency range at -3 dB: 20-25,000 Hz
Frequency response 20-20,000 Hz: ± 1.5 dB
DC resistance: 5 Ω
Recommended load: 100 Ω
Cartidge weight: 12.6 g
