Technics SU-C700
$1,599.00
0% – 3 Year Financing Available!!

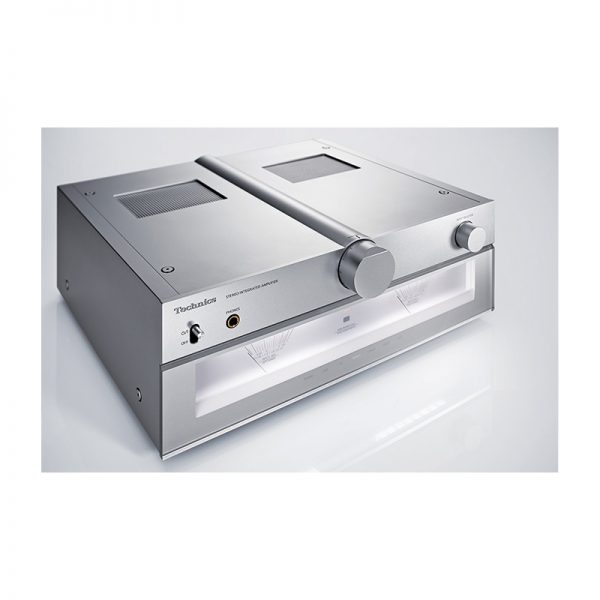

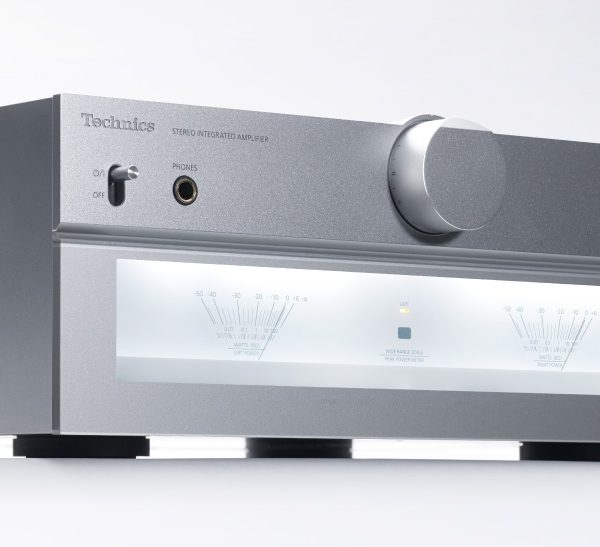

Technics Stereo Integrated Amplifier SU-C700
Technics’ Definitive Integrated Amplifier Fully Conveys the Energy of the Music.
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Just like the R1, the SU-C700 is a fully-digital amplifier and delivers high-resolution digital signals without any distortion being introduced between the input stage and output to the speakers. Technics has developed an original jitter-reduction circuit, avoiding the sound quality degradation due to jitter common to conventional digital amps. It uses a clock generator for the noise-shaping system to reduce jitter in the low-frequency range and a high-precision sample rate converter to suppress jitter in the high-frequency range.
Description
0% – 3 Year Financing Available!!
Technics Stereo Integrated Amplifier SU-C700
Employs innovative fully-digitised processing
that delivers a pure and accurate signal to the speakers.
JENO Engine (Jitter Elimination and Noise-shaping Optimization)
Just like the R1, the SU-C700 is a fully-digital amplifier and delivers high-resolution digital signals without any distortion being introduced between the input stage and output to the speakers. Technics has developed an original jitter-reduction circuit, avoiding the sound quality degradation due to jitter common to conventional digital amps. It uses a clock generator for the noise-shaping system to reduce jitter in the low-frequency range and a high-precision sample rate converter to suppress jitter in the high-frequency range.
LAPC (Load Adaptive Phase Calibration)
Technics has developed a speaker impedance optimization algorithm, using digital signal processing to flatten both the amplitude and phase-frequency response to make the most of your speakers. The result is a sound with better focus, spaciousness and definition.
High-speed Silent Linear Power Supply
Using a large-current Schottky-barrier diode, a rectifier circuit with electrolytic capacitors, and a stabilized power supply circuit, the SU-C700 ensures ample power supply at all times, even when dynamic music demands high current.
Battery Driven Clock Generator
Technics used battery power for low-noise applications in analog amplifiers in the past: here, this same technology is used to improve digital clock precision, enhancing the definition of the sound.
Various Inputs
The SU-C700 supports a wide range of inputs, such as SPDIF, Analog and Phono, as well as USB-DAC for connection of a PC. The digital input terminal supports coaxial 192-kHz/24-bit PCM and optical 96-kHz/24-bit. The USB DAC input terminal supports 192-kHz 32-bit PCM and 2.8-MHz/5.6-MHz DSD native playback (analog output) and asynchronous transmission. The SU-C700 converts analog signals to high-precision 192-kHz/24-bit PCM signals using the A/D converter. The full-digital system achieves high-purity reproduction from any content.
| Input Terminal | File Format | Sample Rate | Bit Depth |
|---|---|---|---|
| Digital Coaxial Input | PCM | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | 16 / 24 bit |
| Digital Optical Input | PCM | 32 / 44.1 / 48 / 88.2 / 96 kHz | 16 / 24 bit |
| USB-B | PCM | 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | 16 / 24 / 32 bit |
| DSD | 2.8224 / 5.6448 MHz | 1 bit |
SPECIFICATIONS
- Accurate Digital Technology
- JENO Engine
(Jitter Elimination and Noise-shaping Optimization)
Load Adaptive Phase Calibration
High-speed Silent Linear power supply
Battery Driven Clock Generator
High Rigidity Metal Double Chassis
- Technics Definitive Design
- High Rigidity aluminium cabinet
White LED illuminated large level meter
Symmetric structure
- Output power
- 45 W + 45 W (1 kHz, T.H.D. 0.3%, 8 Ω, 20 kHz LPF)
70 W + 70 W (1 kHz, T.H.D. 0.5%, 4 Ω, 20 kHz LPF)
- Input sensitivity / input impedance
- LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV/47 kΩ
- Frequency response
- LINE 20 Hz – 80 kHz (-3 dB, 8 Ω), PHONO(MM)
20 Hz – 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω),
COAXIAL1/2/3, 20 Hz – 90 kHz (-3 dB, 8 Ω)
- Load Impedance
- 4-16 Ω
- Analog Input Terminal
- LINE x 1, PHONO(MM) x 1
- Digital Input Terminal
- Coaxial Digital x 3, Optical Digital, USB-B
- USB-DAC (USB-B)
- USB Audio Class Specification
- USB Audio Class 2.0, Asynchronous mode
- Support Codec
- DSCYes (2.8224 MHz, 5.6448 MHz)PCMYes (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24, 32 bit)
- Headphone Output
- Yes
- System Port
- System Control Input/Output (Φ3.5 mm Jack)
- Power Supply
- AC120 V, 60 Hz
- Power consumption
- 73 W
- Dimensions (W x H x D)
- 340 x 132 x 325 mm
13-3/8 x 5-7/32 x 12-13/16 inch
- Weight
- Approx. 8.3 kg
Approx. 18.3 lbs
- Accessories
- Remote control, AC cord, Owner’s manual
