Bellari HA 540

Product Description

0% – 3 Year Financing Available!!

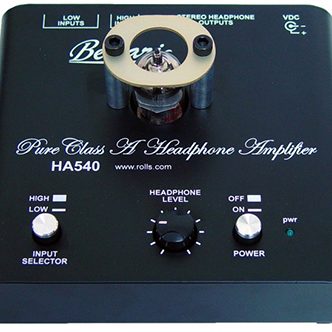

Bellari HA 540 Tube Headphone Amp

BELLARI HAS DONE IT AGAIN! THEY’VE RELEASED ANOTHER TRUE AUDIOPHILE GEM THAT SELLS FOR A BUDGET PRICE.

This time it’s a lush sounding pure Class A tube headphone amp: the ha540. The ha540 is a real high-end piece with plenty of gain that is uniquely capable of driving headphones rated from 16-2000 Ohms.

Having two separate inputs, it’s brilliantly designed to work equally well with both high and low output level source components. This means it will produce a high level signal of superb clarity when connected directly to a CD player, computer, iPod or mp3 player.

A zero-feedback design guarantees a smooth, natural analog response. Bellari products are all hand assembled in the USA.

Features

• input impedance: 47k Ohms
• output generic for 5mg impedance: 16 Ohms
• max output level: +15dBv @ 1kHz at .1% dist.
• thd: .05% @ 1kHz
• s/n ratio: >80dB unweighted
• indicator: 1 power LED
• max output power: up to 500 mW/side, 1 w/stereo (@16 Ohms)
• frequency response: 5 Hz – 30 kHz
• phase shift (in to out): 0 dB
• crosstalk: – 75 dB
• headphone impedance: 16 Ohms – 2000 Ohms
• max input level: +15 dBV
• input connectors: low: rca, 3.5mm stereo, high: rca
• outputs: 1: 1/4″ TRS stereo jack, 1: 3.5 mm TRS stereo jack
• power: 15 VDC – 700mA
• tube: 12AX7

product specifications

• w6 x h2.5 x d5.4 in.
• 3 lbs. pkg.
