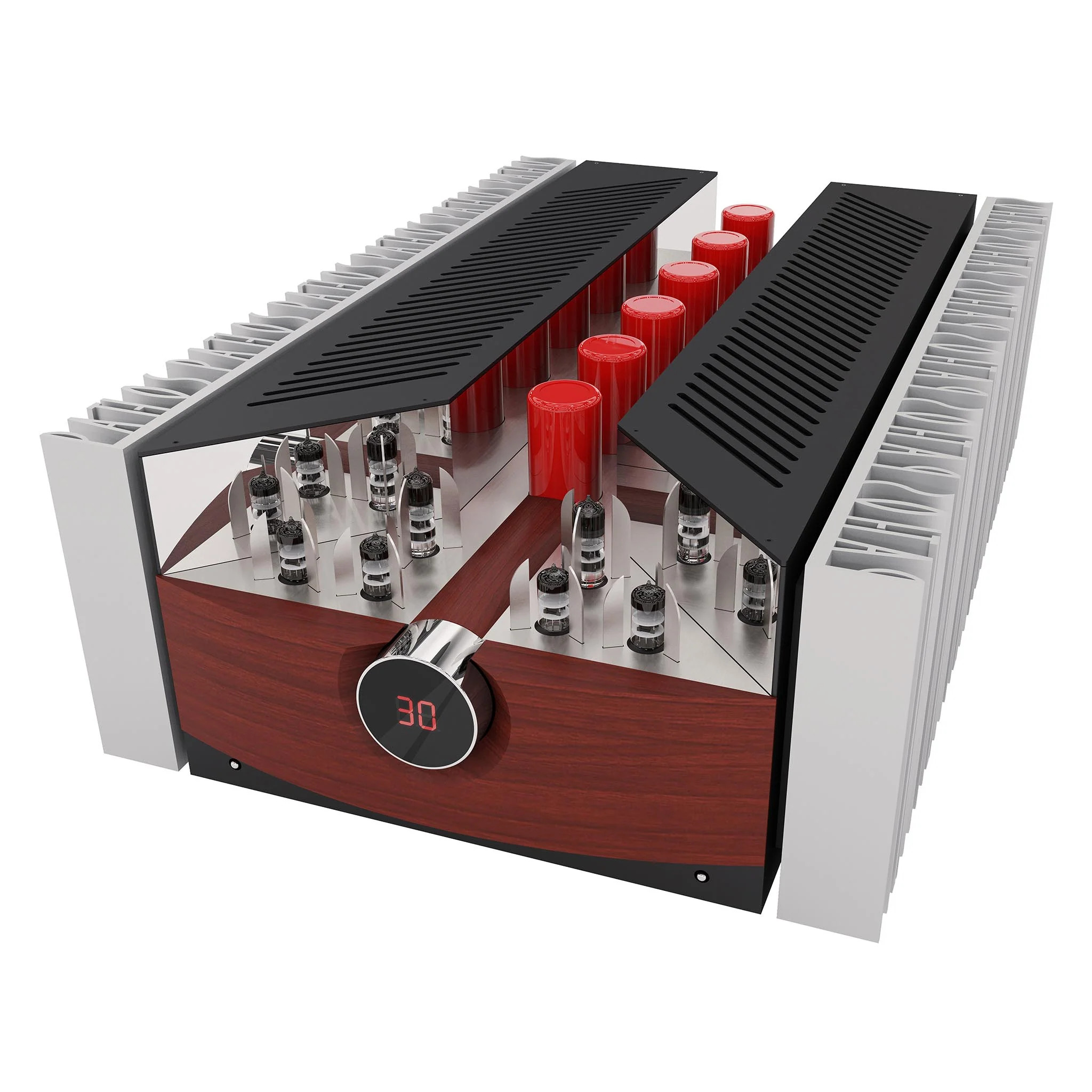

Pathos InPol Legacy Pure Class-A Tube Integrated Amplifier

$55,000.00
Add to cart

$55,000.00

The Pathos InPol Legacy is the flagship reference integrated amplifier from Pathos Acoustics — a fully balanced, dual-mono, pure Class-A design built around a totem-pole tube input stage and Pathos’ most powerful double-InPol output circuit yet. Rated at 100W into 8Ω and 170W into 4Ω, and weighing in at over 300 lbs, it’s engineered without compromise as the ultimate expression of Pathos’ patented InPol technology.

Description

The Pathos InPol Legacy Pure Class-A Tube Integrated Amplifier is the reference statement piece of the Pathos Acoustics lineup — created, in the company’s own words, with “no limits” on size, weight, or ambition. Named as a tribute to co-founder and owner Gaetano Zanini, the InPol Legacy takes the listening philosophy Pathos has refined over 25 years and pushes it to its logical extreme, aiming to match or exceed even the company’s InPower and Adrenalin power amplifiers.

At the heart of the InPol Legacy is a totem-pole tube input stage using two Tung-Sol ECC803S valves and one Sovtek 6H30 “SuperTube” per channel, each channel benefiting from its own dedicated power supply with a separate toroidal transformer. This tube stage handles all voltage amplification, while Pathos’ latest-generation double-InPol circuit — a patented, fully balanced, zero-feedback topology — supplies the current gain needed to drive even the most demanding loudspeaker loads. MOSFET output devices are individually measured and grouped for uniform bias, ensuring consistent performance across the amplifier’s massive power envelope.

Output is rated at 100W per channel into 8Ω and 170W into 4Ω — with the InPol Legacy’s power not simply doubling as impedance halves, a deliberate design choice tied to the thermal limits of true Class-A operation. Independent measurement has shown the amplifier can exceed its rated output, delivering as much as 160W into 8Ω loads before distortion limits are reached. Volume control is handled by a 100-step passive attenuator using low-noise precision resistors switched via insulated relays, operated through an “infinite-turn” rotary knob set into the padouk wood fascia.

True to its reference-class ambitions, the InPol Legacy makes no compromises in its construction. The chassis weighs approximately 140kg (309 lbs) and ships in a custom wooden crate on wheels with detachable lift bars, as installation is a multi-person task. Pathos even offers a dedicated equipment cabinet built specifically to support the amplifier’s weight. Unlike other Pathos integrated amplifiers, the InPol Legacy does not accept the optional HiDac Mk2 DAC card — a deliberate decision by Pathos to keep the Legacy “a pure amplifier,” free of any digital circuitry in the signal path.

As with every Pathos product, the InPol Legacy is designed and hand-built in-house at the company’s facility in Vicenza, Italy, using premium components including capacitors from Itelcond and ICEL and resistors from Vishay, reflecting Pathos’ complete control over its manufacturing process from raw materials to finished amplifier.

  • Reference-Class Double-InPol Circuit – Pathos’ most powerful InPol implementation, purpose-built for the Legacy
  • Totem-Pole Tube Input Stage – 2x Tung-Sol ECC803S, 1x Sovtek 6H30 per channel handle all voltage gain
  • True Dual-Mono Design – Independent power supply and toroidal transformer for each channel
  • 100W/170W Pure Class-A Output – Rated 100W @ 8Ω, 170W @ 4Ω with measured headroom beyond spec
  • Matched MOSFET Output Devices – Individually measured and grouped for uniform bias across channels
  • 100-Step Passive Volume Control – Precision resistors switched via insulated relays, infinite-turn rotary control
  • Zero Global Feedback – Preserves the full harmonic character of the tube input stage
  • Purpose-Built Transport & Support – Ships in a wheeled crate with lift bars; dedicated support cabinet available
  • No Digital Compromise – HiDac Mk2 DAC card intentionally omitted to keep the signal path pure
  • Handcrafted Italian Manufacturing – Built in-house in Vicenza using Itelcond, ICEL, and Vishay components
SpecificationDetail
TypeReference stereo integrated amplifier, pure Class A, double-InPol technology
ConfigurationFully balanced, dual-mono
Tube Complement2x Tung-Sol ECC803S, 1x Sovtek 6H30 per channel
Output DevicesMOSFETs (individually matched and grouped)
Maximum Output Power100 Wpc @ 8Ω (20dBW), 170 Wpc @ 4Ω (19.3dBW)
Frequency Response2 Hz – 100 kHz ±0.5 dB
Input Sensitivity700 mV RMS at full output
THD0.02% @ 1W/1kHz; 0.5% @ 100W/1kHz
S/N Ratio> 97 dB
Gain (Unbalanced / Balanced)31 dB / 25 dB
Volume Control100-step passive, precision resistors, relay-switched
Inputs3 x RCA, 3 x XLR (Neutrik connectors)
Outputs1 pair speaker binding posts (DBT)
Digital Input SupportNot available (HiDac Mk2 not compatible)
Dimensions (W x D x H)21.3″ x 33.7″ x 11.8″ (540 x 840 x 300 mm)
Weight309 lbs (140 kg)
FinishesPadouk Wood, Matte Metallic Black
Warranty3 years
ManufacturingDesigned and hand-built in Vicenza, Italy
