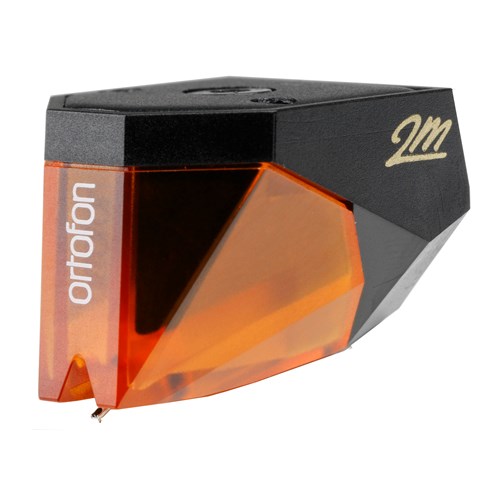

Ortofon 2M Bronze Cartridge

Nude Fine Line diamond stylus – Reference performance!

Ortofon
Categories: , Brand:

Product Description

Price: $440.00

0% Financing Available!!

Ortofon 2M Bronze Cartridge

When it comes to any Vinyl, any Phono purchase, Turntables, Cartridges, Phono Stages, Phono Cables, even if you consider yourself an expert, call our Phono Department FIRST to avoid the many pitfalls that can turn into a very unsatisfactory experience. Talk to our experts, who have been there and done that. We are here to help!

Features:

Nude Fine Line diamond stylus – Reference performance!

Split pole pins – silver plated copper wire.

Precise and accurate performance, an excellent value as well.

If Vinyl is as important to you as it is to us, call our phono experts to see if this cartridge is a good fit for your turntable.

2M Bronze Specifications

Output voltage at 1000 Hz, 5cm/sec.  –  5 mV
Channel balance at 1 kHz  –  1 dB
Channel separation at 1 kHz  –  26 dB
Channel separation at 15 kHz  –  15 dB
Frequency range at – 3dB  –  20-29.000 Hz
Frequency response  –  20-20.000 + 2 / – 0 dB
Tracking ability at 315Hz at recommended tracking force  –  80 µm
Compliance, dynamic, lateral  –  22 µm/mN
Stylus type  –  Nude Fine Line
Stylus tip radius  –   r/R 8/40 µm
Tracking force range  –  1,4-1,7g (14-17 mN)
Tracking force, recommended  –  1,5 g (15 mN)
Tracking angle  –  20°
Internal impedance, DC resistance  –  1,2 kOhm
Internal inductance  –  630 mH
Recommended load resistance  – 47 kOhm
Recommended load capacitance  –  150-300 pF
Cartridge colour, body/stylus  –  Black/Bronze
Cartridge weight  –   7,2 g
2M PnP MkII cartridge with integrated headshell weight  –  20 g
2M PnP MkII cartridge with integrated headshell length – 52 mm
Replacement stylus unit  –  2M Bronze (interchangeable with 2M Black)
