Revel Performa4 M145 Bookshelf Speaker
$1,999.95
- 5.25-inch (130mm) Bookshelf Loudspeaker
- 1-inch (25mm) Deep Ceramic Composite (DCC) Dome Tweeter
- 7th Generation Acoustic Lens Waveguide
- Micro Ceramic Composite (MCC) Woofer with Inverted Surround
- Cast aluminum FEA Optimised Woofer Frame
- Premium 2-way Crossover Design
- Premium Wood Veneer Finish
Description

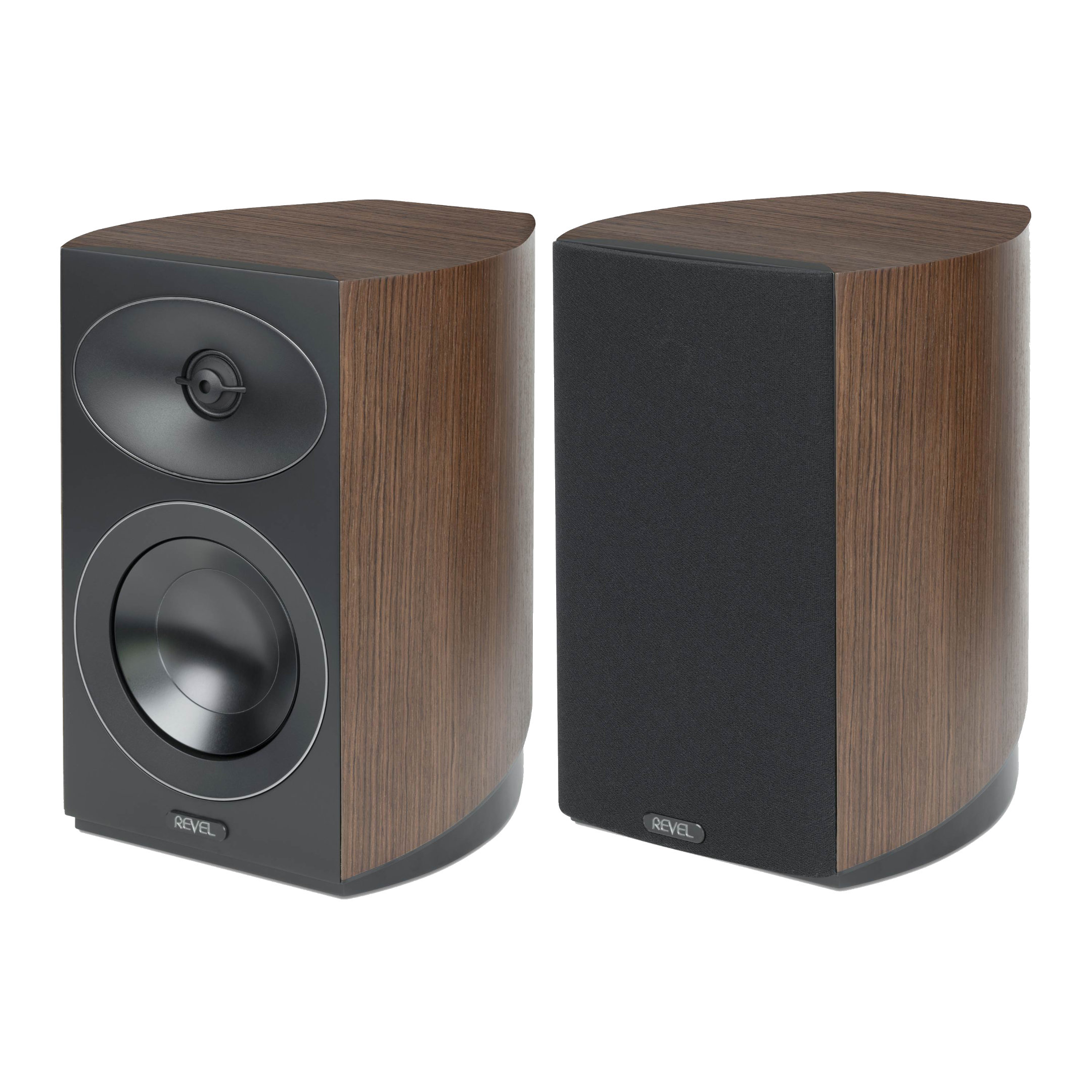

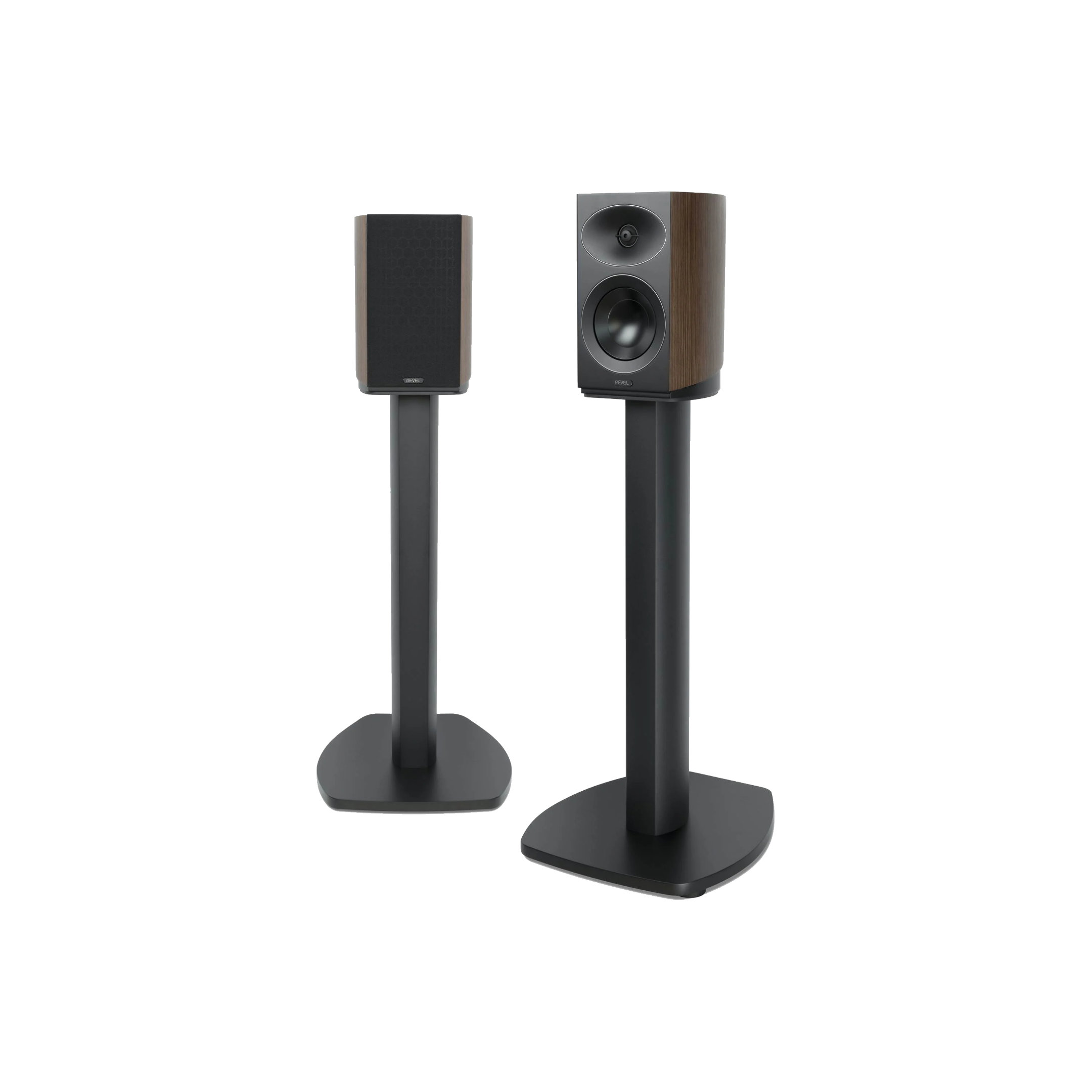

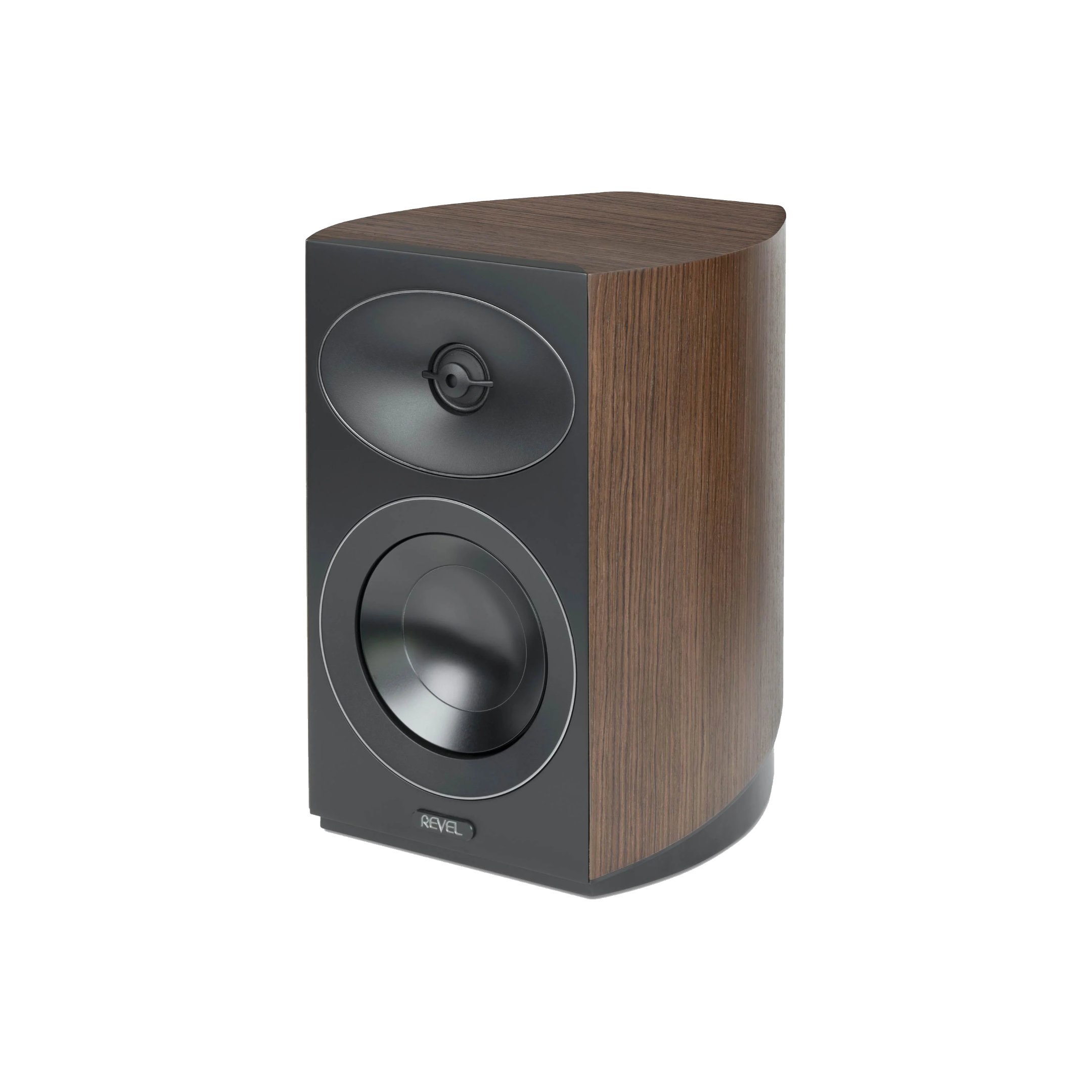

Born from decades of world-class loudspeaker innovation, the Revel M145 is the smaller bookshelf model in the Performa4 series. It features a 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofer and a 1-inch (25mm) DCC dome tweeter mounted in a 7th-generation Acoustic Lens waveguide. These components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy. With the M145, it’s just you and the pure beauty of your music. The M145 is complemented by the optional MFS4 floor stands. The MFS4 provides an elegantly designed stable foundation that positions the loudspeaker at the optimal listening height.
Micro Ceramic Composite (MCC) cone low-frequency driver
The M145 features a 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofer with inverted surround. This design incorporates a hidden flange and integrated trim ring, concealing all hardware and emphasizing the sleek aesthetics of the front panel. The woofer utilizes a newly patented cast frame engineered to optimize airflow for maximum cooling, reduced weight, increased rigidity, and improved resonance performance.
1-inch (25mm) Deep Ceramic Composite (DCC) dome tweeter
The M145’s 1-inch (25mm) DCC dome tweeter is mounted in a 7th-generation Acoustic Lens waveguide, setting a new standard for performance in its class. This advanced design ensures seamless integration with the woofer for superior directivity control, resulting in greater efficiency, improved dynamic range, and reduced distortion. Developed using advanced modeling software, the tweeter delivers exceptionally smooth sound even far off-axis, an important contributor to overall sound quality, providing consistent performance across an exceptionally wide listening area. The new waveguide even increases dispersion at higher frequencies, creating a more immersive and natural listening experience.
Premium Design Details

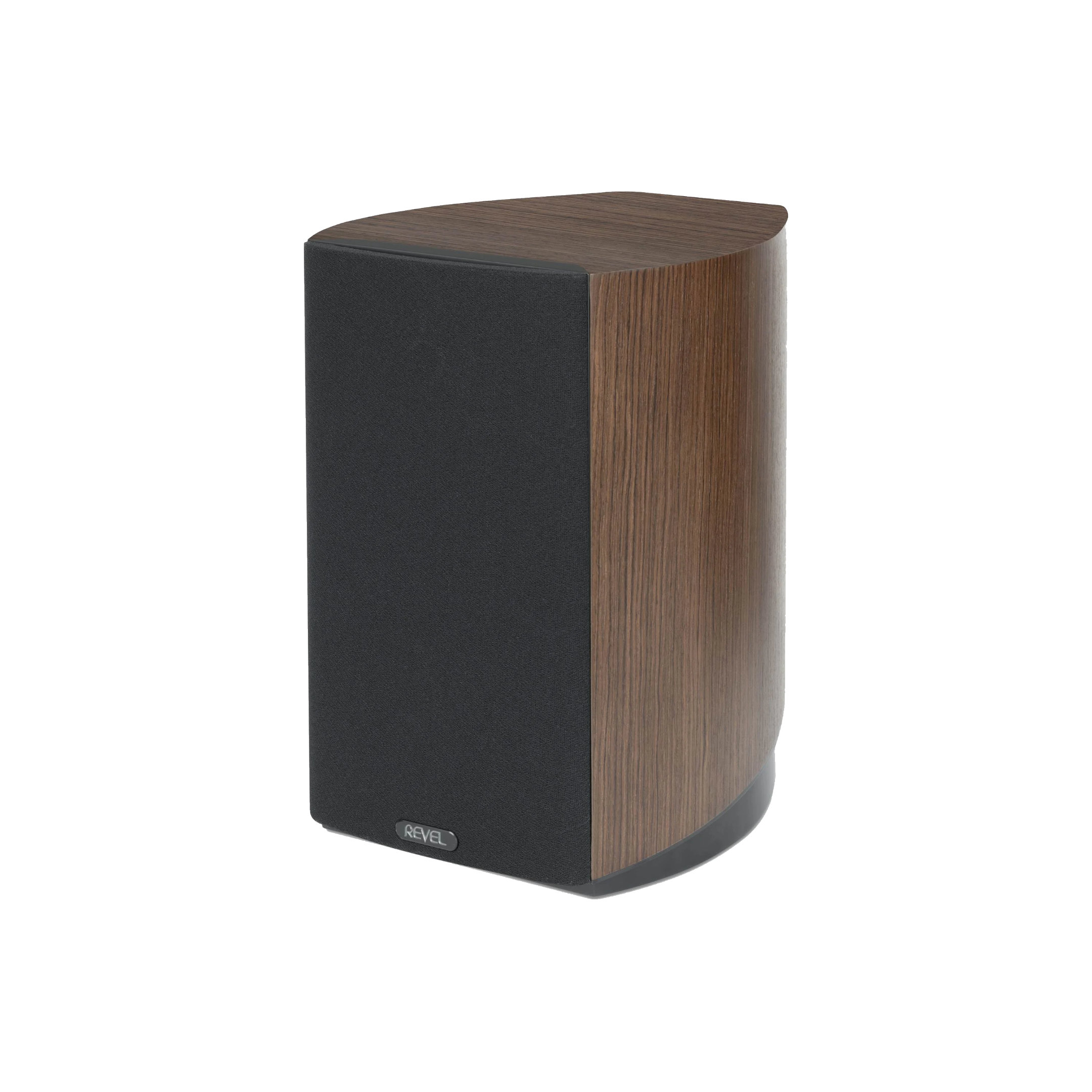

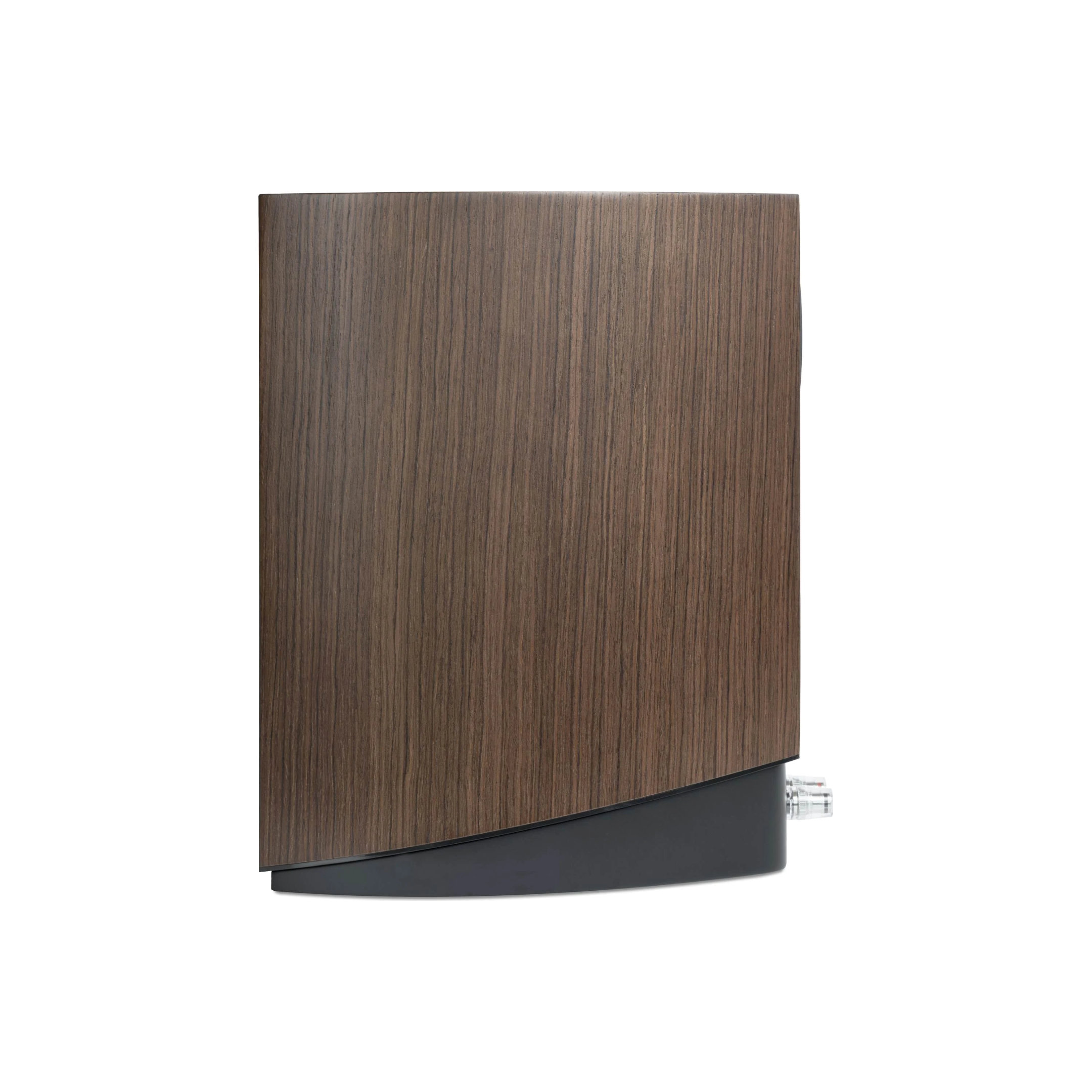

The M145 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.
| Type | Bookshelf Loudspeaker |
|---|---|
| Low Frequency Driver | 1 x 5.25 in (130 mm) Micro Ceramic Composite (MCC) Cone Woofer |
| High Frequency Driver | 1 in (25mm) DCC Dome Tweeter |
| High Frequency Device | 7th generation Acoustics Lens waveguide |
| Recommended Amplifier Power | 15-150W |
| Frequency Response ± 6dB | 54Hz-40kHz |
| Sensitivity @ 1M, 2.83V | 85 dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 1.8 kHz |

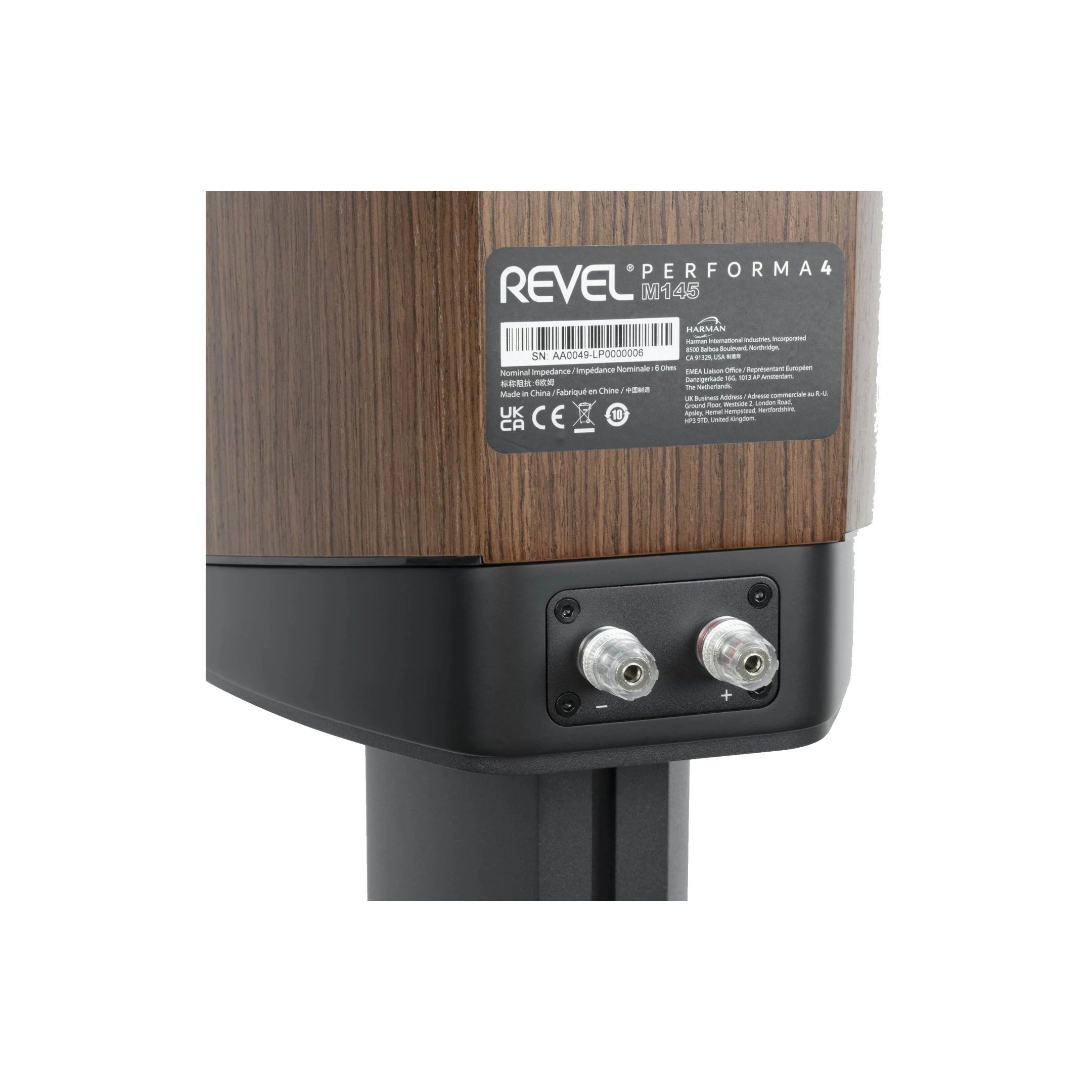

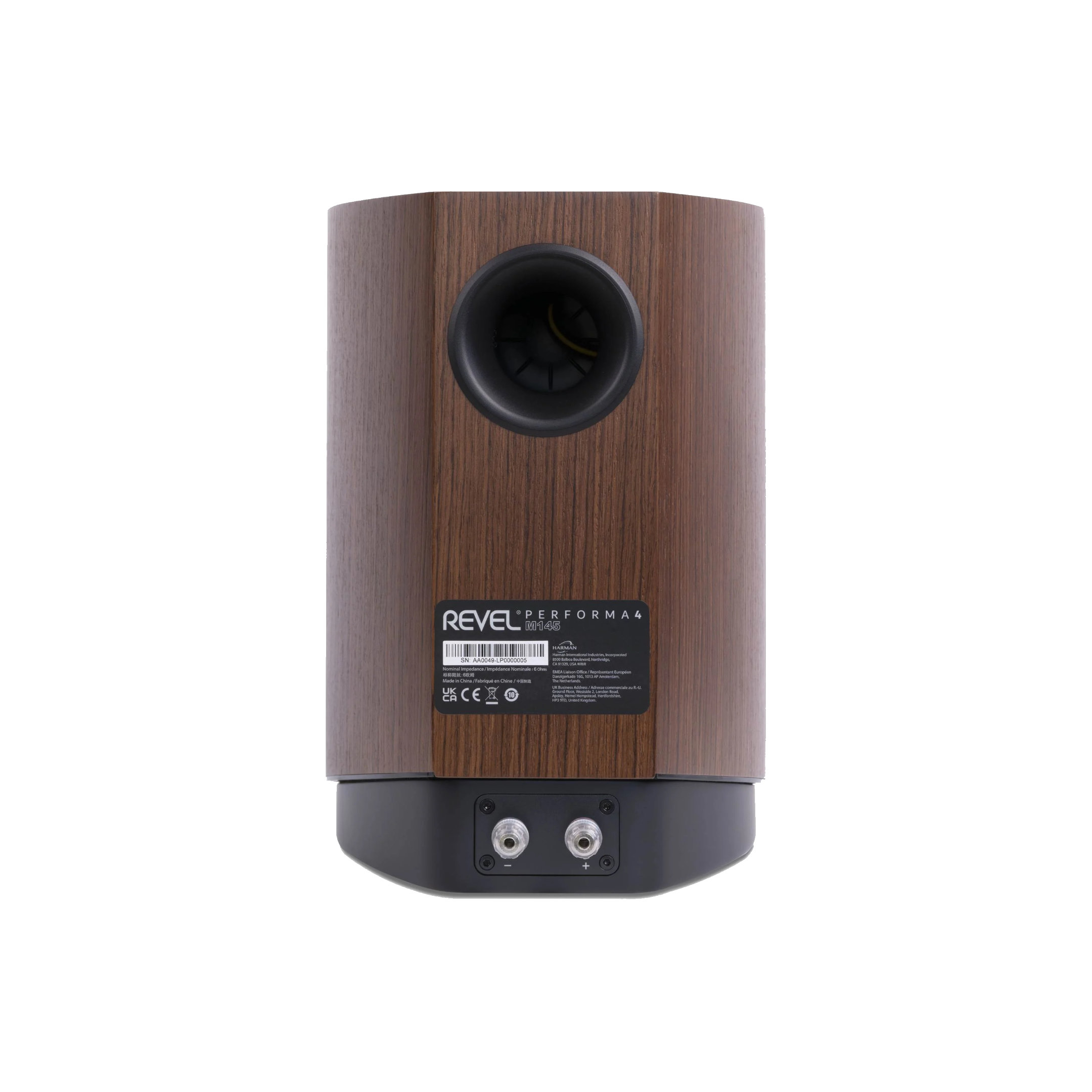

| Enclosure Tuning | Bass-Reflex via Rear-Mounted Port |
| Wood Veneer Finish (Walnut/Black Walnut) | |
| Dimensions (HxWxD) | 11.6in x 7.9in x 9.6in (294mm x 200mm x 245mm) |
| Product Weight:15bs. (6.8 kg) each | |
| Shipping Weight | 39.7lbs. (18 kg) Pair |
| Shipping Units of Measure | Pair |
