Revel F228Be

Revel F228Be Loudspeaker

$5500.00 Each – Brand New – Delivered –

Any Finish, Black, Walnut, Silver, White

Pristine Showroom Demo Available

0% Financing Available – 36 Months

White Knuckles Performance – Live!

The Revel Performa F228Be is a white knuckles performer. Clean, wide open three dimensional sonic signature. A 3-way, dual 8-inch floor standing loudspeaker that will blow your socks off. Based on the F208 platform, really every component has been re-engineered offering the highest level of performance. The all new Beryllium tweeter is so detailed, smooth and clean, amazing.

Product Description

Revel F228Be Loudspeaker

$5500.00 Each – Brand New – Delivered – Any Finish, Black, Walnut, Silver, White

Pristine Showroom Demo Available

White Knuckles Performance – Live!

0% Financing Available – 36 Months

The Revel Performa F228Be is a white knuckles performer. Clean, wide open three dimensional sonic signature. A 3-way, dual 8-inch floor standing loudspeaker that will blow your socks off. Based on the F208 platform, really every component has been re-engineered offering the highest level of performance. The all new Beryllium tweeter is so detailed, smooth and clean, amazing.

One of our best selling loudspeakers!

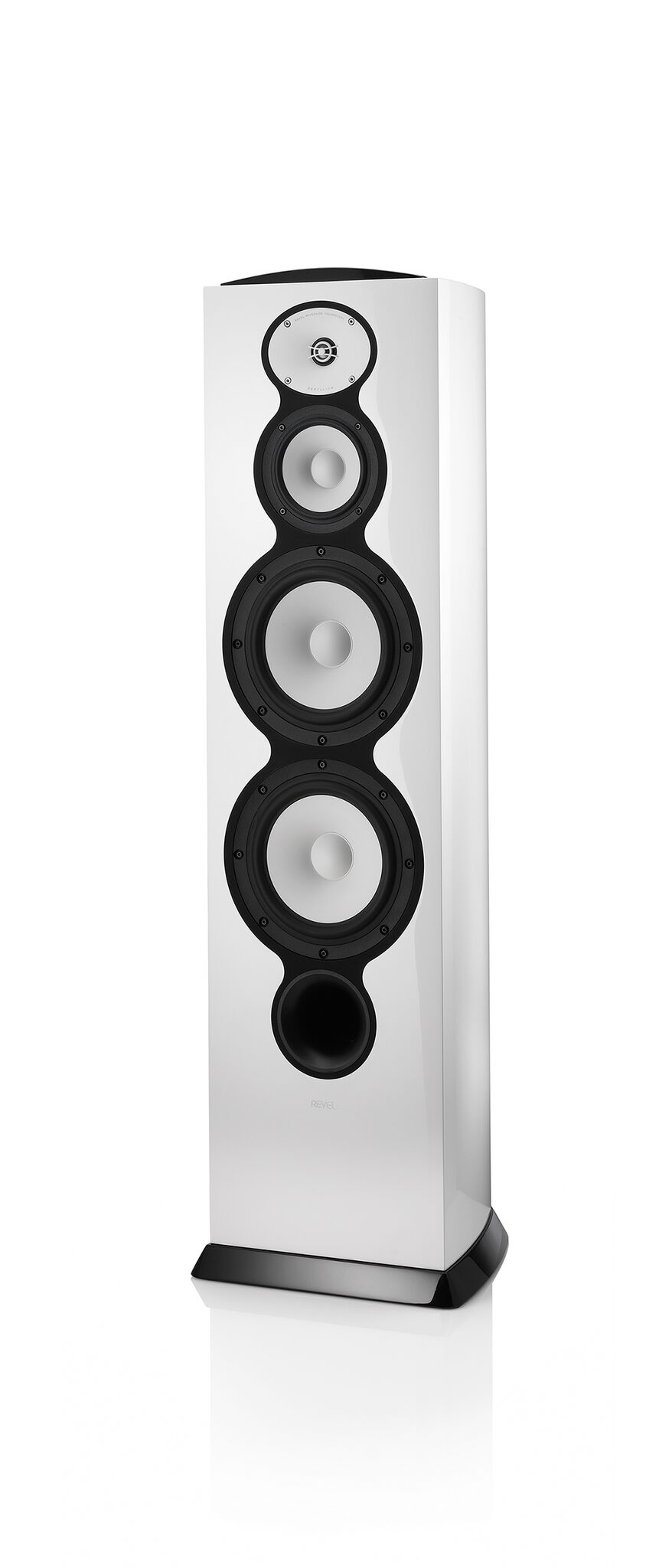

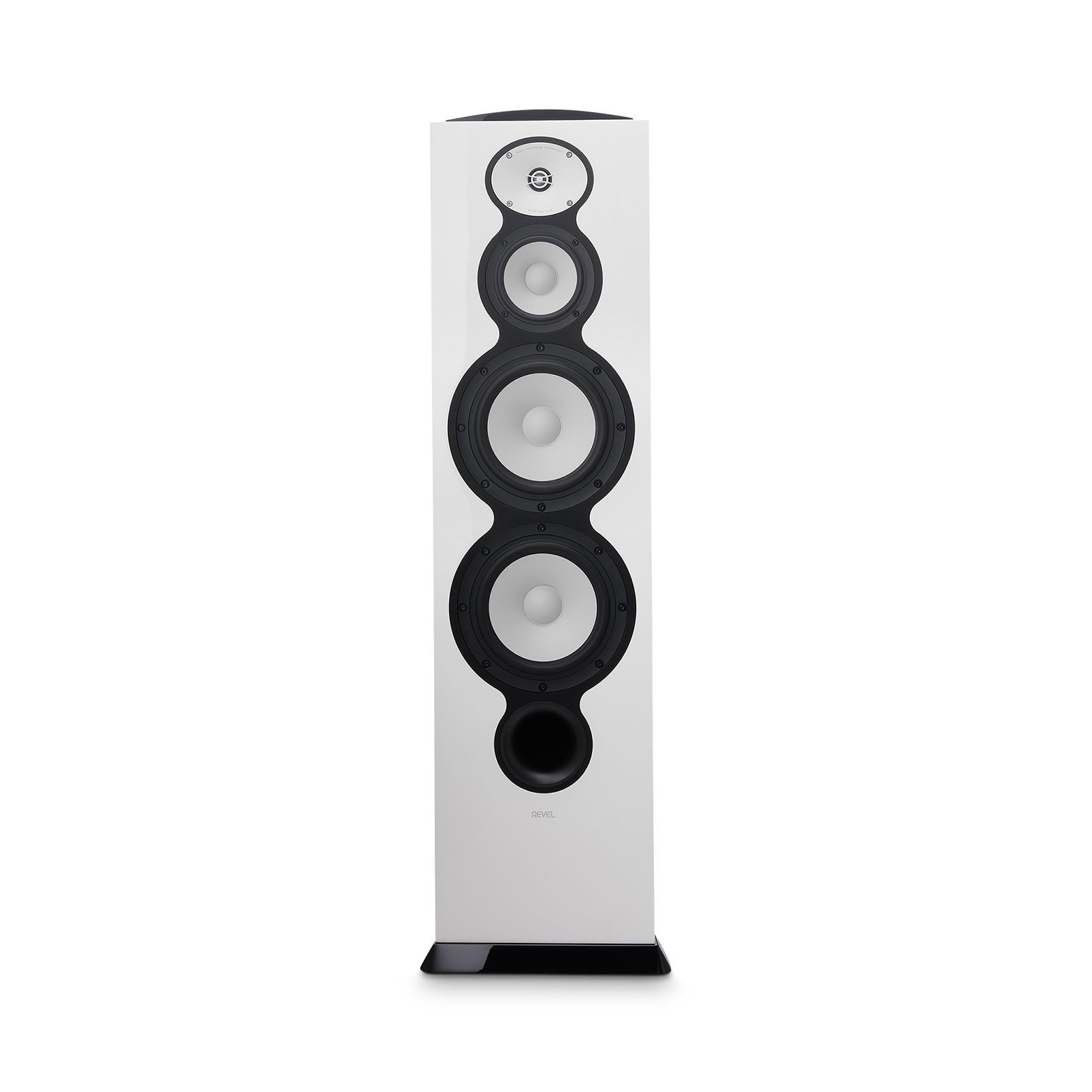

The Revel Performa F228Be’s is powered by a 1-inch beryllium tweeter driven by massive 85mm dual ceramic magnets. This amazing tweeter is mated to a 5th-generation ceramic-coated, cast-aluminum Acoustic Lens. The 5.25-inch midrange driver has been updated with a larger Deep Ceramic Composite (DCC) diaphragm, bigger voice coil and ceramic motor structure. Superior efficiency, superior dynamic range and increased power handling.

PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits.

THE BEAUTY OF BERYLLIUM
Beryllium – Element 4 on the Periodic Table – is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight.

ELEGANT DESIGN
F228Be top panels are artistically painted in metallic black with raised electroform badging. Available in a choice of four high-gloss finishes: Black, White, Walnut and Metallic Silver

Specifications

Description

3-way Dual 8″ Floorstanding Loudspeaker

High-frequency Driver Components

1″ Beryllium dome with acoustic lens waveguide

Mid-frequency Driver Components

5.25″ DCC aluminum cone with cast frame

Low-frequency Driver Components

Dual 8″ Deep Ceramic Composite (DCC) Aluminum Cones with cast frames

Frequency Response (+/-3dB)

27Hz – 44kHz

Recommended Amplifier Power

50 – 350 Watts

Crossover Frequencies

260Hz; 2.1kHz

Nominal Impedance

8 Ohms

Sensitivity

90dB (2.83V @1M)

Finishes

High-gloss Black, White, Walnut and Metallic Silver

Dimensions (H x W x D)

46.5″x 11.8″ x 13.2″ (1181 x 302 x 335mm)

Net weight

82 lbs / 37.2kg

Owners Manual – Click Link

User Manual Revel Performa F228BE
