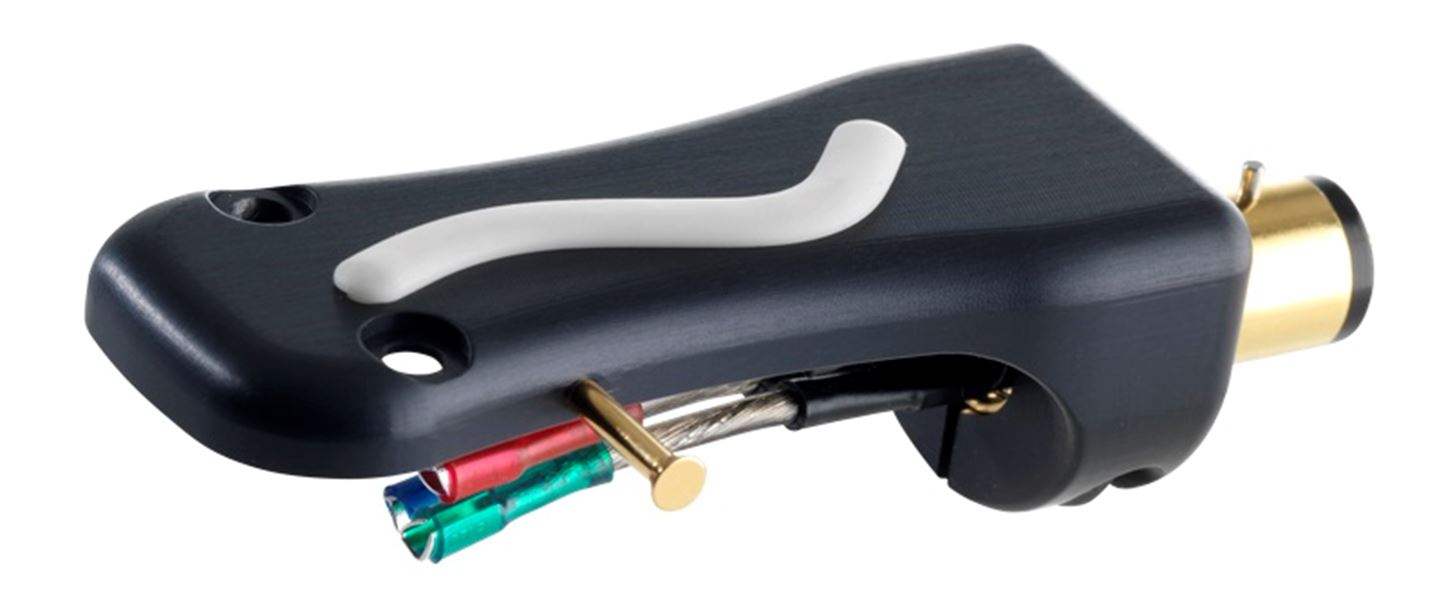

Ortofon LH-10000 Headshell

LH-10000 is perfect for a variety of High-end cartridges.  The design and mechanical dimensions of LH-10000 offer an elegant and virtually plug and play solution between  Ortofon High-End cartridges and our tonearms TA-110/TA-210.

Ortofon
Categories: , Brand:

Product Description

Price: $689.00

0% Financing Available!!

Ortofon LH-10000 Headshell

Materials and features

The LH-10000 is an exceptionally high quality headshell made using a high performance Aluminum alloy with Zinc as the primary alloying element. The Aluminum alloy used for LH-10000 is strong, with strength comparable to steel. It has good fatigue strength and machinability, but offers more resistance to corrosion than many other Aluminum alloys.

LH-10000 features a precision machined slit on the top plate.  A piece of Ortjofon’s special proprietary compound, TPE, with excellent dampening properties. is integrated into the slit. LH-10000 incorporates damping technology similar to the Ortofon  TA-110/TA-210 tonearms and Orthofon Xpression cartridge, promoting a further reduction in unwanted resonances.

LH-10000 applications

LH-10000 is fitted with the set of the most sophisticated lead wires, composed of pure silver and silver coated wire. Silver coated wire transmits the very clear high tone signals, which brings the brilliant tonality.

LH-10000 is perfect for a variety of High-end cartridges. The design and mechanical dimensions of LH-10000 offer an elegant and virtually plug and play solution between  Ortofon High-End cartridges and our tonearms TA-110/TA-210.

LH-10000 is azimuth adjustable, which is beneficial for optimal channel separation.

LH-1000 technical data

  • High performance Aluminium alloy with zink
  • Weight – 14.5 grams
  • Mounting distance – 42 mm
  • Mounting holes diam. – 2.7 mm
Headshell dimensions.jpg

A – Headshell length

B – Headshell width

C – Mounting distance max.

D – Mounting distance min.

E – Screw diameter max.



HEADSHELL MODELA
Headshell length
B
Headshell width
C
Mounting distance max.
D
Mounting distance min.
E
Screw diameter max.
SH-451.5 mm20.0 mm44.0 mm35.0 mM3.0 mm
LH-200050.3 mm20.0 mm41.9 mm32.5 mmN/S
LH-400041.9 mm32.5 mmN/S
LH-600047.7 mm19.1 mm42.5 mm37.2 mmN/S
LH-800050.5 mm19.0 mm41.9 mm32.5 mmN/S
LH-900052.0 mm20.0 mm46.0 mm38.0 mmN/S
LH-1000051.2 mm19.4 mm42.0 mm42.0 mm2.7 mm
