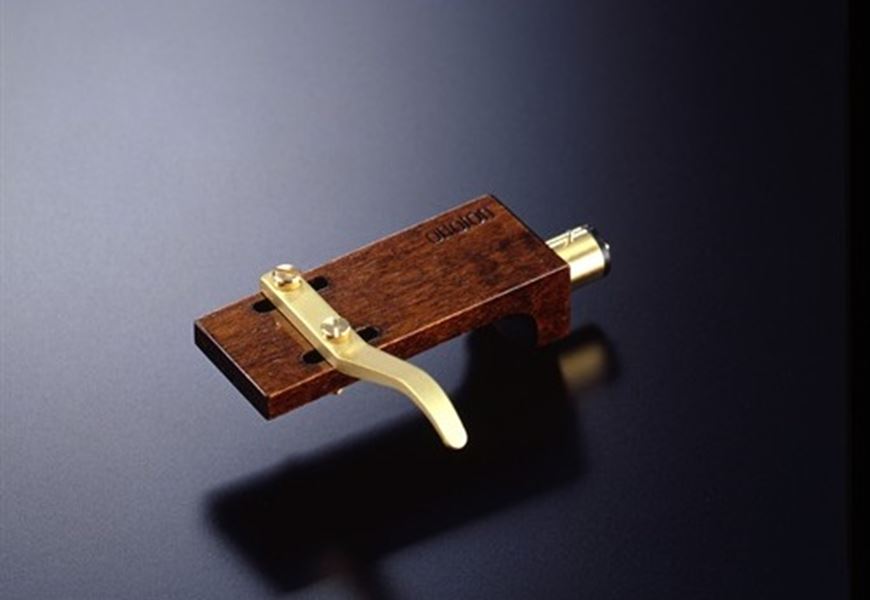

Ortofon LH-8000 Headshell

The LH-8000 is a high quality handmade wood-based headshell with a polished brass finger lift. The highly attractive LH-8000 is perfect for a variety of cartridges, e.g. MC Jubilee, MC Windfeld, MC Windfeld Ti, 2M Bronze, and 2M Black.

Ortofon
Categories: , Brand:

Product Description

Price: $199.00

0% Financing Available!!

Ortofon LH-8000 Headshell

The LH-8000 is a high quality handmade wood-based headshell with a polished brass finger lift. The highly attractive LH-8000 is perfect for a variety of cartridges, e.g. MC Jubiliee, MC Windfeld, MC Sindfeld Ti, 2M Bronze and 2M Black.

Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please find Ortofon headshells dimensions chart below.

Features and technical data

  • Universal mount
  • Japanese oaktree with Urushi lacquer finish
  • Weight – 8.5 grams
  • Mounting distance – min 32.5 mm, max 41.9 mm
Headshell dimensions.jpg

A – Headshell length

B – Headshell width

C – Mounting distance max.

D – Mounting distance min.

E – Screw diameter max.



HEADSHELL MODELA
Headshell length
B
Headshell width
C
Mounting distance max.
D
Mounting distance min.
E
Screw diameter max.
SH-451.5 mm20.0 mm44.0 mm35.0 mM3.0 mm
LH-200050.3 mm20.0 mm41.9 mm32.5 mmN/S
LH-400041.9 mm32.5 mmN/S
LH-600047.7 mm19.1 mm42.5 mm37.2 mmN/S
LH-800050.5 mm19.0 mm41.9 mm32.5 mmN/S
LH-900052.0 mm20.0 mm46.0 mm38.0 mmN/S
LH-1000051.2 mm19.4 mm42.0 mm42.0 mm2.7 mm
