Ortofon LH-9000

0% Financing Available!!

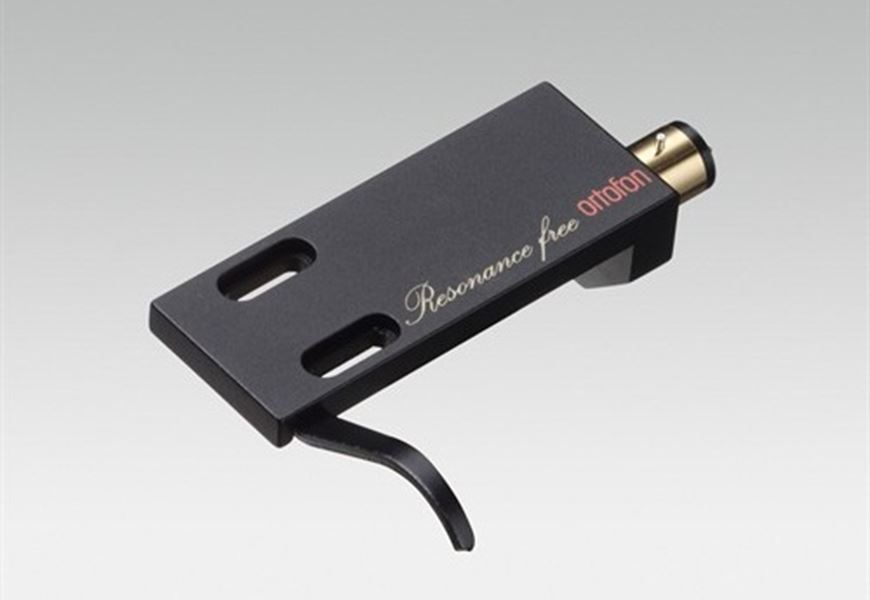

Ortofon LH-9000 Headshell

Exceptionally high quality carbon fiber headshell, the LH-9000 is made using carbon fiber resin for the elimination of unwanted resonances. The LH-9000 is perfect for a variety of high-end cartridges, e.g. Cadenza Series, MC A95, & MC Windfeld Ti.



Ortofon
Categories: , Brand:

Product Description

Price: $259.00

0% Financing Available!!

Ortofon LH-9000 Headshell

Exceptionally high quality carbon fiber headshell, the LH-9000 is made using carbon fiber resin for the elimination of unwanted resonances. The LH-9000 is perfect for a variety of high-end cartridges, e.g. Cadneza Series, MC A95 and MC Windfeld Ti.

Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please find Ortofon headshells dimensions chart below.

Features and Technical data

  • Universal mount
  • Magnesium with carbon fiber
  • Weight – 16.8 grams
  • Mounting distance – min 38 mm, max 46 mm
  • High Purity Copper headshell leads (LW-7N) included
Headshell dimensions.jpg

A – Headshell length

B – Headshell width

C – Mounting distance max.

D – Mounting distance min.

E – Screw diameter max.



HEADSHELL MODELA
Headshell length
B
Headshell width
C
Mounting distance max.
D
Mounting distance min.
E
Screw diameter max.
SH-451.5 mm20.0 mm44.0 mm35.0 mM3.0 mm
LH-200050.3 mm20.0 mm41.9 mm32.5 mmN/S
LH-400041.9 mm32.5 mmN/S
LH-600047.7 mm19.1 mm42.5 mm37.2 mmN/S
LH-800050.5 mm19.0 mm41.9 mm32.5 mmN/S
LH-900052.0 mm20.0 mm46.0 mm38.0 mmN/S
LH-1000051.2 mm19.4 mm42.0 mm42.0 mm2.7 mm
