Ayon CD-35 HF

The RS7 Music Server can run Audirvana, Jriver, Roon, HQPlayer

0% – 3 Year Financing Available!!

Ayon Audio “The Bugatti of Audio”

AXPONA 2018 Show Winner – Positive Feedback Editors Choice

“Audio Oasis” Award!

“Best Sound” Cost No Object LA Audio Show 2017 – The Show Newport 2016

Robert Harley & Neal Gader

The Absolute Sound Magazine Award

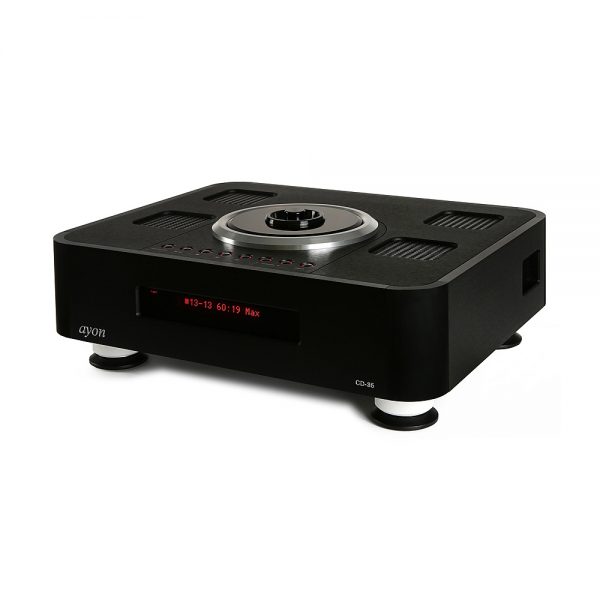

Ayon CD-35 HF –  Tube CD Player – SACD Player – Tube DAC

All pertinent components are matched at 1% level – Reference

SACD – DAC – Streamer – Pre-amplifier – Volume Control 100% Analog Domain – Vacuum Tube



Product Description

The RS7 Music Server can run Audirvana, Jriver, Roon, HQPlayer

As an option, you can also STREAM to this baby with the RS7 Music Server by USA Labs. Amazing sonic performance, Tidal, Qobuz, DSD & More! Get all the details, call 1-800-676-1085 Ext 2

Run ROON on any Network Player Streamer, DAC, even if your streamer or DAC is not ROON Compatible!

Intel Core i7

BUILT FOR HIGH END AUDIO

STATE OF THE ART WITH INTEL

Zero computer/network knowledge needed. Just plug it in! Plug & Play. Setup video is available & if needed our techs can & will remotely setup the RS7 for you for Free. All you have to do is connect the RS7, power it up and we will take it from there, Remotely via computer. Pretty cool right!

Do not use a computer to stream your music, computers run dozens of background programs just to keep the computer up & running. This causes unwanted, noticeable noise in the signal path.

The RS7 has no Noise, no fans, super fast instantaneous delivery, huge horsepower for large libraries, no spinning disks, no moving parts, imbedded operating system, no drivers, all solid state, runs super COOL, built for high end audio Only! Put it anywhere, Plug & Play. Solid State drive included.

Link to the RS7 Music Server

https://www.usatubeaudio.com/product/digital/cd-disc-players/rs7-roon-server-copy/

Ayon CD-35 HF – The Sound of Studio Master Tape!

0% – 3 Year Financing Available!!

High-Fidelity-logo

High Fidelity High End Audio Magazine

Master Review of the Ayon CD-35 HF – Conclusion!

So, I decided to present you my thoughts on the CD-35HF, my reasoning, counting that conclusions will be obvious. The basic one is the following:

The Ayon CD-35HF is the best sound source in the world, akin only to master tapes or their copies and a few turntables!



AXPONA 2018 Show Winner – Positive Feedback Editors Choice

“Audio Oasis” Award!

“Best Sound” Cost No Object LA Audio Show 2017 – The Show Newport 2016

Robert Harley & Neal Gader

The Absolute Sound Magazine Award

Positive Feedback Online Audio Oasis Award Ayon Lumenwhite BBS USA Tube Audio

Positive Feedback Online Audio Oasis Award !



Ayon CD-35 HF –  Tube CD Player –  SACD Player – Tube DAC

All pertinent components are matched at 1% level – Reference – Volume Control 100% in the Analog Domain – Preamplifier

Special Highlights

V-cap TFTF coupling capacitors;
Franc Audio – Ceramic Feet;
WBT-210 NextGen RCA Jacks;
Tantalum 2-Watt resistors for tube output-stage;
AKM 4497EQ for DAC section;
Black Finish for cooling slots, Top plate buttons, CD-LID and CD-inside housing;
All pertinent components are matched at 1% level;
Limited at 50 pieces in total and max. 2 pcs. per month are built only;

Ayon CD-35 HF

Whipped up by the great success of the CD-35 we got more and more requests to launch a special and limited Version of the CD-35, quasi a “digital” machine that is as “analog” as never before. All music lovers who seek the Holy Grail in top analog turntables or reel to reel tape studio master playback, the Ayon CD-35 HF is for you. Many ideas, thoughts, suggestions, and a dedicated assistance of the people of the HighFidelity.pl magazine also were incorporated in the CD-35 HF project. Based upon the existing CD-35 technology every detail was re-examined carefully, refined, high-selected, re-adjusted, and the best-sounding components were implemented at the decisive points of the circuitry. Also, its slightly modified appearance, equipped with additional black elements, underline the exclusivity.

The CD-35 HF reflects a deep magical illumination of space, paired with a dynamic black deployment of power second to none. With its enormous musical representation and its tranquility in detail, also the “long-term listening” is always experienced as being relaxed and inspiring.

Herewith, a new era of digital/analog CD, SACD, DAC reproduction presents itself in the foreground, a masterpiece of the art of sound.

SACD – DAC – Streamer – Pre-amplifier – Volume Control 100% Analog Domain – Vacuum Tube

The Ayon CD-35 HF establishes a new benchmark in SE-Triode vacuum-tube CD/SACD-Player performance by combining a fully balanced PCM-DSD DAC.  The CD-35 HF is also prepared for computer playback and general DSD professional audio use. The CD-35 HF is in many respects a new ground-breaking CD/SACD/DAC Player design with an advanced technology like a new vacuum tube output stage, new magnetic clamp system with separate CD-LID, new DAC design and a switchable PCM-DSD converter (DSP module).  Based on a zero-feedback, pure tube circuit design and a tube rectified power supply, the CD-35 HF reveals the manifold layers of music with utmost transparency while projecting a deep and highly focused 3D soundstage. Sonic signature, that of Studio Master Tape Recording Playback!

The bass is extended and powerful, its midrange pure, liquid and permeated with natural warmth, while the top is extraordinarily clean and finely detailed. This Reference CD/SACD/DAC Player offers an uncompromising quality level in every aspect. The CD-35 HF is one of the most exciting CD/SACD/DAC Player with vacuum-tube output stage and the best sounding CD/SACD/DAC Player that Ayon Audio ever built.

Specifications

SACD/CD-PlayerAyon CD-35 HF – 1% Matched Components
Conversion rate768kHz / 32 bit & DSD 256
DAC confirgurationFully symmetrical / 2 x 4497EQ AKM-Japan
DSP module (option)PCM→DSD & DSD→DSD
Tube complement6H30 & 5687
Dynamic range> 120dB
Output level @1 kHz  / 0,775V -0dB Low2.5V fixed or 0 – 2.5 V rms variable
Output level @1 kHz  / 0,775V -0dB High5V fixed or 0 – 5V rms variable
Output impedance  Single-Ended-RCA~ 300 Ω
Output impedance  Balanced-XLR~ 300 Ω
Digital output75 Ω S/PDIF (RCA)
Digital input75 Ω S/PDIF (RCA), USB, I2S, BNC, AES/EBU,

3 x BNC for DSD

S/N ratio> 119 dB
Frequency response 20Hz – 50kHz  +/- 0.3dB
Total harmonic distortion @ 1kHz< 0.001%
Remote controlYes
Output complement RCA & XLR
Dimension (WxDxH) cm48x39x12 cm
Weight21 kg

Specifications subject to change without notice

Features & Design

Full-featured Tube Top Loader CD/SACD/DAC Player
Class-A triode vacuum-tube output stage for single-ended & balanced operation

Signal Path
We believe that the simplest circuits work best together with the shortest signal path. That is why our pre-amplifiers to date have used single-ended pure class-A circuitry. The shorter the signal path is, the less possibility of sonic degradation from various sources, including the wire itself. Even on the circuit boards, the copper traces are kept to a very minimum length. The completely redesigned circuit board provides a more straightforward and direct approach to the signal paths.

●  Logical sequenced soft-start power up for extended tube life
●  Warm up function
●  0dB negative feedback  (of any kind)
●  Ultra short signal path
●  Simplest direct circuit path for purest musical sound and high reliability
●  Low output impedance for driving long runs interconnect to an amplifier, and any tube or solid state power amp
●  No solid state devices in the analog tube output (signal path )
●  Minimal discrete wiring for optimum signal propagation
●  No followers or buffers in the signal path
●  No DC servo that degrades the signal
●  High quality parts throughout
●  Fully hand assembled to insure the highest level of craftsmanship
●  Separate analog output stage for left and right channel
●  The volume is controlled in the analogue domain
●  DAC digital input – S/PDIF (RCA) , AES/EBU (XLR), I2S, BNC, USB, 3 x BNC for DSD;
●  Digital output – S/PDIF (RCA)
●  Ultra-low jitter internal clock generator

Power Supply
The power supplies have been further refined with new components and enhanced AC line noise filtration. Separate power transformer windings and filters provide total isolation between the input and output stage which makes this a pure power source and it is a critical attribute for a 6H30/5687 output stage.

●  2 separate R-Core / Low noise – insulated power transformer for digital & analog
●  Innovative power supply provides a high speed energy delivery on transients
●  Separate and isolated power supplies over each stage of amplification
●  Tube rectification for 6H30/5687 analog output stage
●  Choke filtering for 6H30/5687
●  Regulated DC filament supplies with soft start for 6H30/5687
●  AC power line filter to avoid noise and hash from entering into the unit.
●  10 separate voltage regulators

Components 1% Matched
The type of parts used therefore must have a synergistic relationship to the circuit they are placed in. It is this relationship of which type of part to use where, that ranks our products apart from the mass.

●  Selected, premium quality passive components used in all applications
●  High speed  & high quality audiophile grade components
●  High quality special tube sockets with gold pins
●  Superior capacitors
●  High quality – RCA & XLR jack
●  Gold-plated industrial grade PCB

Mechanical Construction
The high grade aluminum chassis impart a richer, more lustrous tonality with a cleaner back-ground and less hash and grain. All brushed anodized anti-vibration-resonance and non-magnetic chassis’s are fully hand assembled to insure the highest level of craftsmanship.

●  Backlit function buttons
●  Modified suspension system to isolate the SACD/CD-transport from mechanical  vibrations
●  Anti-vibration magnetic CD-clamp system
●  Front panel descriptions are engraved
●  Franc Audio – Ceramic Feet

●  Chassis finish: black



Ayon Audio CD-35 HF – High Fidelity – The Sound of Master Tape!

High-Fidelity-logo

WORLD PREMIERE

Below you will find a text regarding the Super Audio CD Ayon Audio CD-35 High Fidelity (HF) Edition player. It is not a classic test, but rather a record of the state of consciousness in the face of its sound, its presence in the system. In my system, it has permanently replaced my former favourite – the small, inconspicuous-looking Ancient Audio Lektor AIR V-edition player, with all the modifications that I have predicted for it.

Ayon CD-35 HF SACD DAC Right

Ayon CD-35 HF SACD DAC

That was not an easy decision for me and the Ayon player had stayed in the box for about two weeks before I unpacked it, two more before I seriously listened to it and yet one more before I finally started comparing. It is because each modification of my reference system is a hard time for me. This is not the reason why the Ancient player had been my basic sound source for six long years – or even longer, since July 2011. It simply sounded and still sounds like a dream – like many times more expensive players manufactured by the company’s excellent competitors.

I had only felt jealous twice during that time and seen the player’s fully exposed problems – after the meeting of the Krakow Sonic Society devoted to the four-piece dCS Vivaldi system and while testing a two-piece CEC player, with the TL0 3.0 belt-drive transport and the discrete DA0 3.0 digital-to-analogue converter. I was also impressed with two other fantastic sources – the Métronome Technologie Kalista CD and the Chord Blu MkII/DAVE.

This time I had no more doubt and, with regret, decided to sell the Ancient player, even though it has confirmed the good intuition of its constructor and given witness to his knowledge, despite passing time. Let me add that this is the last test that I have written for the December issue of “HF”. Since January 2018, I am going to start tests with another change in my system – the AC Siltech Triple Crown Power cable which beautifully matches the Ayon player (it is the same top level). The rest of the cables, i.e. the interconnects and speaker cables came from the same series of the same manufacturer.

| Context

When we met Janusz, a man of Renaissance (as he calls himself), the host of some meetings of the Krakow Sonic Society and owner of the Super Audio CD Ayon Audio CD-35 HF Edition No. 02/50 player during a concert break, we could not reach a consensus on whether the piano that Piotr Anderszewski played sounded dull or simply pastel. Rysiek, Wiciu and Bartek (participants in the same meetings of the KSS) thought that the sound of the instrument was phenomenal and the performance outstandingly smooth and balanced. Let us add that the artist got a few encores – both solo and with the Sinfonietta Cracovia orchestra that he performed with. Janusz claimed that the sound was dull and that it lacked definition and impact characteristic for a concert Steinway.

The discussion took place on the first floor of the NOSPR in Katowice, i.e. the seat of the Polish National Radio Symphony, regarded a concert that was played as part of the 12th International Gorczycki Festival and was continued during a meeting that we organized a day later at Janusz’s. Did the differences in opinions result from the fact that Rysiek, Bartosz and I sat at a balcony right above the piano and Janusz at the front, slightly lower than we did, but quite far away from the stage? Probably not, because Wiciu sat with him. Or did they result from the fact that we hear things differently? There must be some truth in that statement, but years spent on listening sessions have convinced me that although we hear things in different ways, there is some kind of consensus on what good performance and sound are.

And perhaps it is about what Wiciu noticed, i.e. expectations? That could be closest to the truth. It was our first visit at that place and first exposure to the sound of the hall and its look – everything that the genius loci comprises, so we could have had different impressions of the same sound. It is something that we also deal with in the audio domain, perhaps mainly when it comes to absolute-top products. Both examples are connected by the fact that although we can discuss different things, we discuss things unattainable for other people. Anyway, Janusz and I have exactly the same opinion of the Ayon player.

It is a shame to admit it, but we need to face it – after the ICE centre was built in Cracow, we come there so often that we are not attracted by other, even better concert halls, a few of which we already have in Poland (read more about the ICE and NOSPR halls HERE). But the NOSPR hall is excellent. Its sound is the result of cooperation between many project and executive teams, but the end result is the effect of collaboration with the Japanese Nagata Acoustics company. In Katowice, its work was supervised by Mr Yasushisa Toyota, a master in his field.

Earlier, the Japanese company worked on building such halls as the Suntory Hall in Tokio, Walt Disney Hall in Los Angeles or Concertgebouw in Amsterdam. Yasushisa Toyota took part in creating musical buildings with such famous architects as Frank Gehry or Jacques Jean Nouvel. What is interesting, it was Kristian Zimmerman, the most recognizable Polish pianist next to Piotr Anderszewski, who proposed engaging this company in works in Katowice.

That immediately directs us to the main topic of this article – the already mentioned Ayon Audio CD-35 HF Edition player and to how music played at home should really sound like. In this case, these two things go together because one provokes the other – listening to CDs on the Ayon player is so incredibly satisfactory that I ask myself whether this is not even better than a live event. In the end, I have the best seat, I listen to artists I have no chance of hearing during a concert and it all sounds the way which makes me believe, at the very moment I believe this is real music and not reproduction. That would be a point for Janusz, as a listening session with the Ayon player resembles that “ideal” location, i.e. ca. 12 meters from the instrument and not what we heard during the concert in Katowice.

On the other hand, I am painfully aware that listening to recorded music – and first recording itself – is transferring one type of art into another domain, irreversibly transforming a live event into a completely different experience. I also know it is not real in the sense that it has already taken place and only constitutes a reflection of something real, filtered through the sensitivity and skills of a lot of people. I cannot give up the doubt that I am dealing with something that Filip Springer wrote about travelling and maps:

Using a map is dealing with space that we own. We can do anything we want with it. A map lures us with and promises freedom, frees us from our duties. The more accurate it is, the easier it is to believe it.

There is only one problem – all maps lie. It has been like that since their beginning.
It is obvious, as it is impossible to transfer the surface of a sphere onto a plane in a way that allows us to avoid distortions. […] My map also lies […]

Filip Springer, Miasto Archipelag. Polska Mniejszych miast, Krakow 2016

As regards Anderszewski’s piano, I forgot to add that it had no lid – we talked to each other after listening to the first part of the concert, with Armide Overture and Joseph Haydn’s Piano Concerto in D major Hob. XVIII:11. After the break we also listened to Apollo et Hyacinthus Overture and the Piano Concerto No. 17 in G major, KV. 453 by Wolfgang Amadeus Mozart.

| The CD-35 overall

I am beginning to understand that I am dealing with an archipelago – not only of stories but also cities themselves. They cannot be connected using one line. I decide to divide them into groups and connect them using circles. The result is not that good, but looks more promising. So, I have some kind of a plan (that will soon disintegrate) and some kind of a map – everything I need to start some kind of a journey.

Ayon CD-35 HF SACD DAC Rear

Ayon CD-35 HF SACD DAC

Op. cit.

From a technical point of view, the CD-35 HF Edition player is a very close relative of the basic model, i.e. the CD-35. It is a Super Audio CD player and its Signature version has digital inputs (including a USB), an analogue preamp with three inputs and an upsampler which lets us change PCM signal from Compact Discs and DSD64 signal (SACDs) to DSD128 or DSD256. It is a one-piece device, but is treated as a top Ayon Audio source by Gerhard Hirt, the company owner. We (i.e. the Krakow Sonic Society) also liked the player, which was demonstrated by the Special Award High Fidelity 2016, given to the device in December 2016.

During the world premiere of the player at the abovementioned meeting, Janusz and I got enchanted by what the small device can do. It was not the best in the world and not even the best among those that we had had in our systems – let us not forget about the incredible dCS Vivaldi, Métronome Technologie Kalista CD, Chord Blu MkII/DAVE and C.E.C. TL0 3.0/DA0 3.0. The thing is that everything it did, it did well and we could not find any errors in it. Regardless of the type of music played, it let us enter it deeper than other digital sources.

The CD-35 owes it equally to its digital and analogue section. It was created for a few years, the longest of which (three years) was spent on developing D/D digital filters that convert PCM signal to DSD. On the one hand, it is quite a simple task that is dealt with by small specialized chips, like in the Amare Musica Diamond Tube DAC DSD, but such actions have never convinced me when it comes to top high-end. In the end, it is all about changing one format into another, which always affects signal (its content).

However, upsampling in the Ayon player, or rather its algorithm prepared by specialists from StreamUnlimited, is a completely new experience. Not only does the sound lack nothing, but, in a way, it also lets us recover something from it, even if we play a SHM-SACD, not only a CD. That is greatly aided by the tube output section with tube amplification – probably the best digital player output section that has so far been invented by Ayon.

| The CD-35 HF Edition overall

Whipped up by the great success of the CD-35, we got more and more requests to launch a special and limited version of the CD-35, a quasi-digital machine that should sound as analogue as never before. All music lovers engaged in top analogue turntables and/or reel-to-reel tape recorders also may feel to be approached. Many ideas, thoughts, suggestions and a dedicated assistance of the people of the HighFidelity.pl magazine also were incorporated in the CD-35 HF project.

Source: ayonaudio.com

Some sparks flew between the participants in the meeting (not from a faulty plug). As a result, we met Gerhard before Christmas the same year at a restaurant in Cracow, close to the market, to discuss an idea that we all got at the same time, articulated by Gerhard: let us make the CD-35 even better.

There were a lot of ideas and Gerhard promised to examine all of them with his engineers. It all proved more difficult than we had expected. Now it seems simple and although everyone can improve something in their player by changing components, please believe me – if this is to be a holistic project, it is not going to be an easy task (see DC-Components: historia jednego apgrejdu – Eng. DC-Components: the history of one upgrade). It took the Ayon team half a year and three people worked on the player at that time. After examining various options, a decision was made to make the following changes:

  • V-cap TFTF coupling capacitors,
  • Franc Audio Accessories Ceramic Feet,
  • WBT-0210 Au NextGen RCA jacks,
  • Tantalum 2-Watt resistors for the tube output-stage,
  • AKM 4497EQ converters, one per channel, differently implemented,
  • more silence drive,
  • all important components matched at 1% tolerance level,
  • black finish for silver elements – cooling slots, the CD-LID and CD-inside housing.

As Gerhard said, resistors took them most of the time. Originally, he and his engineers only wanted to replace those in tube cathodes, but when they heard how big a difference was made by that small change, they decided to replace them all. And here problems started – the device heats up a lot, as there are a lot of tubes within the little space in it and the selected top-class tantalum 2-Watt resistors are not commonly available, while the former ones did not yield the assumed sound results.



An important element of the device are also Ceramic Disc feet manufactured by the Polish Franc Audio Accessories company. Its owner, Paweł Skulimowski, specially made a version with a white body for the project. I was not initially sure about the colour, until I placed the player on my shelf – then everything “went together well”. Thanks to the feet, the device becomes lighter, is not heavy and “floats”. Additionally, it sounds much better than on the original feet. It is a great distinction for the Polish company, but a well-deserved one.

Another element that has been made with special care is the amplifier. It is based on two R-core transformers and a choke, with a tube full-wave rectifier for output tubes (a Soviet NOS-type tube) – this role is played by double triodes – the 6H30N Electro-Harmonix and General Electric JAN-5687WB from army supplies (JAN = Joint Army Navy). In a Pi filter, one of the branches consists of very large polypropylene and not electrolytic capacitors – this solution has been tested in the manufacturer’s top preamplifiers. I only changed the fuses – the one that can be reached from the outside is now Verictum, while the four inside were manufactured by Creative Hi-Fi.

Assembling the tested version of the CD-35 takes the company two weeks – the longest of all its products, with the exception of the Conqueror – the firm’s top preamplifier. There are plans to assemble only 50 units. At the back panel of each there is a special plate with the “High Fidelity” logo, a subsequent number and Gerhard’s signature. This version is called High Fidelity Edition.

| Hard facts

I was a little afraid of the first meeting with the version named after the magazine that I had created – it is always an unknown, even if everything that is done is based on good assumptions. That was unnecessary – the result exceeded my greatest expectations. It will not be an exaggeration when I say that this is one of the few best digital sources in the world and, at the same time, it is closest in sound to an analogue master tape, which makes it different from the few players that I am talking about.

I already pointed it out in the basic version, as its sound character was then already so incredible and different from other digital sources that a large group of music lovers, disgusted or confused, could immediately start looking for something else, as this is sound practically without edges, details, planes, 3D images and space. I am exaggerating a little but not too much. I know the sound of analogue tape played from a top tape recorder, as I took part in the recording sessions of the Studio Muzyki Przestrzennej Teatru imienia J. Słowackiego (Eng. Studio of Spatial Music of Juliusz Słowacki Theatre) in Cracow, established by my mentor – Józek Rychlik. That was a fully analogue studio – at that theatre, I played music from the Studer 820 and ReVox PR99 MkII tape recorders (three per each stage) and then I heard master tapes played during shows, presentations and private meetings.

So, I have never understood respect that music lovers pay to vinyl. I was brought up on black discs, but they have just been one of the possibilities for me, as far from analogue tape as other ones, but in a different way. The CD-35, especially in the HF Edition, is closest to my experiences of all the digital and most analogue sources that I know; only the abovementioned CEC player does something similar. It is an absolutely fulfilled sound. It lacks nothing, as it is not listened to as a hi-fi product for even a moment. We choose recordings based on their musical content and if this is good music, each has its own story to tell.

Of course, one can attribute certain features to this sound – it is not ethereal or bland. A listener’s attention focuses on the midrange, although the bass and treble are at their place. But, for example, the CD Kalista and dCS Vivaldi pay more attention to high and low sounds – not because they emphasize them but due to the fact that they construct instrument shapes in this way, opening sound and giving it a solid foundation. Compared to them, the Ayon player may seem to have little courage – I got a similar impression when I listened to Chord and CEC systems.

However, this is because the Austrian player builds the musical message from the inside – it brings sounds to the surface and does not construct them. Its message is incredibly homogeneous, similarly to the sound of analogue tapes. All elements go well with one another, rule together and nothing is specially energized. However, the incredibly high dynamics characteristic for the way the CD-35 HF plays recordings is unique. Never before have I heard anything like that from a CD or SACD and only few, absolutely top turntables reacted similarly to an impulse in my system.

It is sound at an incredibly high level – world class, not something typical for a provincial artist or businessman. The sophistication is manifested by a lack of complexes and perfect knowledge of one’s strengths and weaknesses. However, this is also sophistication without pretentiousness, as the Ayon player pays equal attention to the new Seong-Jin Cho album with a selection of Debussy’s recordings, carefully created by the Japanese and released as a SHM-CD and to a limited edition album with Jens Pauly’s music that is close to drone, released in a microscopic number of units by our friends from Karlrecords on a CD-R (r/f album). What matters is what is concrete – music, emotions, value.

It is not that the player does not differentiate. It naturally does it in an outstanding way. However, if I can put it this way, the differentiation is favourable – it neither sharpens anything nor opens a battlefield where it does not exist. It perfectly points out the differences between Master CD-R versions and ordinary pressings, which could be witnessed by the readers who are members of the Krakow Sonic Society during meetings in Warsaw, at the Audio Video Show 2017. Having listened to a better version of a given album on it – a Platinum SHM-CD, an Ultimate HQCD, or perhaps the still inimitable XRCD in each of its versions, we will look only for them, mostly because we will get more music with them and not because they “sound better”, as this is, as Janusz puts it, pure bullshit.

It is the first SACD player which makes me understand what this format is about, which places it higher than a CD. So far, I have had an impression that I am dealing with promises or perhaps potential possibilities. The CD-35 HF immediately puts us in the right position: sound with SACDs is smoother, deeper, more subtle and fuller (into the inside). These may not be fundamental differences, but they are important enough for me to start looking for these discs. Once heard, SHM-SACDs or simply single-layered ones make us seriously deal with the issue, on the same level as with the Master CD-R.

Janusz, the host of the Krakow Sonic Society, is a man faithful to his beliefs, consistent in what he does. It was him, a music lover, who opted for Japanese mini LP editions a long time ago and then for all their upgrades, and now zealously believes in SHM-SACDs and does not want to hear about anything else. Even though I do not give up CDs so easily and do not get nervous when I listen to them, as they also sound great, I fully understand him, also because the softness, the inner softness of the sound makes us able to listen to music for a long and very long time, loud and very loud – and yet we do not feel tired. We get a lot of information, but not through an attack, but osmosis – like in real life, like during a concert.

This is a player which most deeply and successfully appeals to my sensitivity, my aesthetics and my needs. It does not occupy much space, but offers a lot of conveniences, e.g. a fantastic DAC that I successfully tried out during the test of the Fidata HFAS1-S10U audio server/file player and, more recently, with the Lumin D2 file player. There is also an analogue preamplifier, even though in my system sound was better with an external preamp – the Ayon Audio Spheris III.

The Ayon player is THE choice, it was the Ayon that seduced and enchanted me.

| Story

I have been trying to present the essence of my observations regarding the Ayon Audio CD-35 High Fidelity Edition player. I did not want to make it an obvious story based on the assumption that something that bears a “High Fidelity” logo and that has been created taking into account the remarks and comments of people from the Krakow Sonic Society cannot sound bad. I have wanted it to be a reliable and accurate sound analysis. I collected materials, listened to music, compared and analysed. I made a few attempts at writing the test and I felt the absurd of what I was doing each time. Finally, I decided to write individual paragraphs as if it was a conversation. I think I have managed to tell you more in this way than with the aid of a classic test.

It was Professor von Ranke who established a lot of standards for the work of a historian and, as one of the first researchers, put emphasis on the narrative aspect of history. Meeting him allowed me to understand that even such a precise rule as a law of physics must be told to be understood. I think that, in fact, the story does not have to differ too much from a poem. [Leopold Ranke (1795–1886), a German historian – Editor’s note]

Filip Springer, op. cit.

It is the kind of a player that makes a classic description a little pointless, as it twists what can be said about the device a little – the more that this story continues and I am still learning about the player. So, I decided to present you my thoughts on it, my reasoning, counting that conclusions will be obvious. The basic one is the following: it is one of the best sound sources in the world and only good tape recorders with master tapes or their copies and a few turntables can produce yet more natural and better sound. The same level is represented by, perhaps, three abovementioned SACD and CD systems that are still so different that it will be easy for potential purchasers to say “yes” or “no” to the Ayon player. It is state-of-the-art modern digital technology.

AYON AUDIO in “High Fidelity”



Technical specifications (according to the manufacturer)

Conversion rate: 768 kHz/32 bit & DSD 256
DAC: 2 x AKM 4497EQ
DSP module (option): PCM→DSD & DSD→DSD
Tubes: 6H30 + 5687

Dynamic range: > 120 dB
Output level (1 kHz):
– Low: 2.5V fixed or 0 – 2.5V rms variable
– High: 5V fixed or 0 – 5V rms variable
Output impedance (XLR | RCA): ~ 300 Ω | ~ 300 Ω

Digital output: 75 Ω S/PDIF (RCA)
Digital inputs: 75 Ω S/PDIF (RCA), USB, I2S, BNC, AES/EBU, 3 x BNC for DSD
S/N ratio: > 119 dB
Frequency response: 20 Hz – 50 kHz (+/- 0.3 dB)
THD (1 kHz): < 0.001%
Dimensions (WxDxH): 480 x 390 x 120 mm
Weight: 42 lbs.

Ayon Audio USA – 1-310-601-7976 Ext 2 & 1-800-676-1085 Ext 2 Sales  – www.usatubeaudio.com

1 review for Ayon CD-35 HF

  1. tomiewilson

    This is the most amazing front end I have ever heard. Worth every penny. A keeper for life. Open, three dimesional, organic.
    Tomie

Add a review

Specifications
SACD DAC CD-Player Preamplifier

Ayon CD-35 HF – 1% Matched Components

Conversion rate

768kHz / 32 bit & DSD 256

DAC confirguration

Fully symmetrical / 2 x 4497EQ AKM-Japan

DSP module (option)

PCM→DSD & DSD→DSD

Tube complement

6H30 & 5687

Dynamic range

> 120dB

Output level @1 kHz  / 0,775V -0dB Low

2.5V fixed or 0 – 2.5 V rms variable

Output level @1 kHz  / 0,775V -0dB High

5V fixed or 0 – 5V rms variable

Output impedance  Single-Ended-RCA

~ 300 Ω

Output impedance  Balanced-XLR

~ 300 Ω

Digital output

75 Ω S/PDIF (RCA)

Digital input

75 Ω S/PDIF (RCA), USB, I2S, BNC, AES/EBU,

3 x BNC for DSD

S/N ratio

> 119 dB

Frequency response

 20Hz – 50kHz  +/- 0.3dB

Total harmonic distortion @ 1kHz

< 0.001%Remote controlYesOutput complement RCA & XLRDimension (WxDxH) cm48x39x12 cmWeight21 kgSpecifications subject to change without notice
