JBL Synthesis HDI-3800

0% – 3 Year Financing Available!!

Free Shipping in Continental U.S.

$2750 each

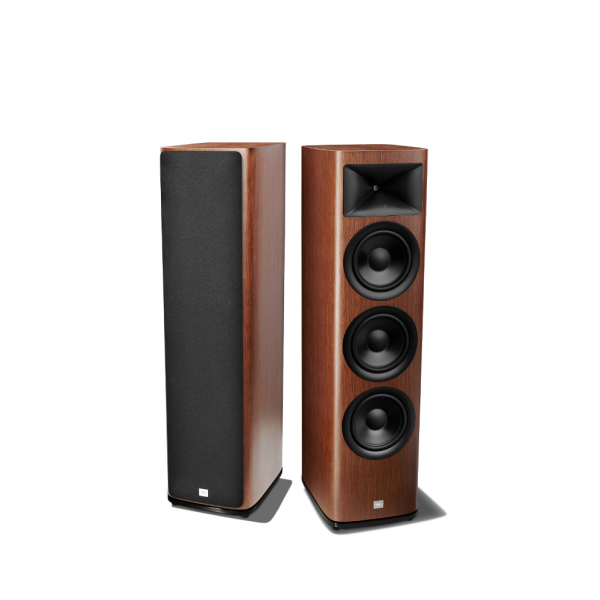

JBL Synthesis HDI-3800  Loudspeaker

2 ½-way Floorstanding Loudspeaker

HDI woofers take advantage of core JBL engineering techniques to ensure very high output with low distortion.

JBL Synthesis

Product Description

0% – 3 Year Financing Available!!

Free Shipping in Continental U.S.

$2750 each

JBL Synthesis HDI-3800  Loudspeaker

2 ½-way Floorstanding Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide technology, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

HDI woofers take advantage of core JBL engineering techniques to ensure very high output with low distortion. The long-throw voice coil in conjunction with the symmetrical field motor design, flux stabilization ring, and copper shorting ring guarantee maximum output with significantly reduced distortion. Advanced Aluminum Matrix cones, provide a lightweight, rigid diaphragm and eliminate breakup modes ensuring proper pistonic motion throughout the operating band.

The HDI-3800 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance.

HIGHLIGHTS

  • Patented HDI™ (High-Definition Imaging) waveguide technology
  • Patented 2410H-2 high-frequency compression driver
  • 8-inch (200mm) cast frame, Advanced Aluminum Matrix cone woofers with 1.5-inch voice coils
  • Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer

SPECIFICATIONS

* Enclosure Type: Bass-reflex design with rear-firing port
* High Frequency Transducer: 1-inch (25mm) Teonex compression driver
* Low / Mid Frequency Transducers: Three 8-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers
* Crossover Frequency: 800Hz, 1800Hz
* Sensitivity (2.83V @ 1M): 92dB
* Nominal Impedance: 4 Ohm
* Recommended Amplifier Power: 250W – 300W
* Frequency Response: 37Hz – 30kHz (-6dB)
* Dimensions (H x W x D): 43.33 x 11.81 x 16.45” (1100.5 x 300.0 x 417.8mm)
* Net Weight: 83.78 lbs (38.00kg)

Reviews

There are no reviews yet.

Be the first to review “JBL Synthesis HDI-3800”

JBL Synthesis HDI-3800 2 1/2 Way Floorstanding Loudspeaker
Specifications

Enclosure Type: Bass-reflex design with rear-firing port
High Frequency Transducer: 1-inch (25mm) Teonex compression driver
Low / Mid Frequency Transducers: Three 8-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers
Crossover Frequency: 800Hz, 1800Hz
Sensitivity (2.83V @ 1M): 92dB
Nominal Impedance: 4 Ohm
Recommended Amplifier Power: 250W – 300W
Frequency Response: 37Hz – 30kHz (-6dB)
Dimensions (H x W x D): 43.33 x 11.81 x 16.45” (1100.5 x 300.0 x 417.8mm)
Net Weight: 83.78 lbs (38.00kg)
