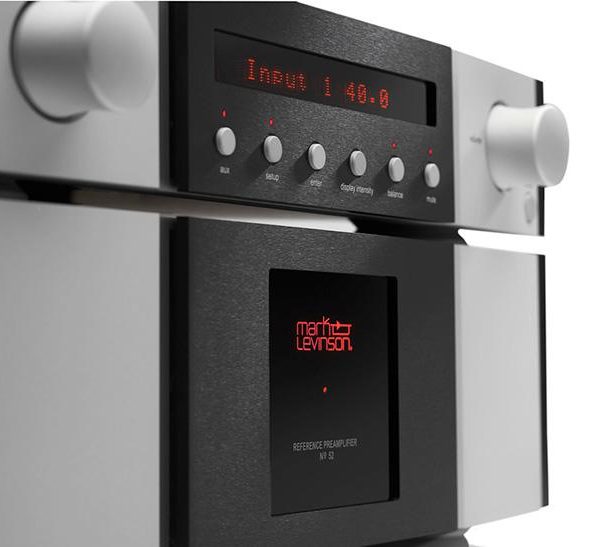

Mark Levinson No. 52
O% 48 Months Financing Available !! – $19000
Nº. 52
HIGHLIGHTS
- Two-piece chassis with separate control box and analog box
- 7 Analog inputs: 3 XLR and 4 RCA stereo input pairs
- Dual Monaural construction and signal paths/routing
- Phono input with support for both MM and MC cartridges
- AC regeneration circuitry
- Rear-panel USB (A) connector for software updates
The Nº52 is unquestionably the finest Mark Levinson preamplifier ever. This dual-monaural preamplifier isolates the critical analog audio circuitry from the control section with a two-chassis approach to provide the purest signal paths possible.
Product Description
O% 48 Months Financing Available !! – $19000
Nº. 52
HIGHLIGHTS
- Two-piece chassis with separate control box and analog box
- 7 Analog inputs: 3 XLR and 4 RCA stereo input pairs
- Dual Monaural construction and signal paths/routing
- Phono input with support for both MM and MC cartridges
- AC regeneration circuitry
- Rear-panel USB (A) connector for software updates
The Nº52 is unquestionably the finest Mark Levinson preamplifier ever. This dual-monaural preamplifier isolates the critical analog audio circuitry from the control section with a two-chassis approach to provide the purest signal paths possible.
Nº52
“The Nº52 features seven analog inputs – three balanced XLR and four unbalanced RCA – as well as a dedicated phono input configurable for moving-magnet (MM) or moving-coil (MC) operation. Two sets of pre-outs are duplicated in both XLR and RCA jacks, while an additional auxiliary pair of XLR and RCA outputs is configurable, for fixed or variable output with independent source selection. This function allows the auxiliary output to function as a third pre-out, a pass-through full-range subwoofer output or a record output.
The Nº52 comes with a unity-gain SSP mode that integrates the connected sources into a home theater system while still maintaining optimal and independent stereo operation for music. System controls include Ethernet, Mark Levinson’s proprietary ML Net, and 12V trigger and IR control ports, as well as a USB connector that can facilitate software updates. Additionally, the included remote control also operates both the Nº52 and other connected Mark Levinson components.
The peerless craftsmanship of Mark Levinson is evident in every aspect of the Nº52. Within the control section, mirror-imaged DC power supplies and AC regeneration circuitry optimize power for the cleanest, most stable signals possible. Individual DC power cords supply power to the audio section in the second chassis to prevent extraneous noise from passing into the DC power signals, while communication and control signals are sent along a dedicated third cable to the audio section. The audio chassis is also configured in a mirror-image, left/right design with isolated, independent PCBs for volume control and for main and auxiliary signal paths. The communication signals are contained in a shielded central compartment, as is each channel of the phono input. Heavy aluminum extrusions and thick aluminum plates solidify the chassis and provide an optimized foundation for the audio circuitry.”
Nº52
Specifications
DESCRIPTION
Reference Dual-Monaural Preamplifier
FREQUENCY RESPONSE
10Hz – 40kHz (±0.2dB)
FREQUENCY RESPONSE (PHONO)
±1dB (RIAA response)
INPUT IMPEDANCE
Input Impedance (line-level): 100k ohms — Input Impedance (phono): Resistive: 3.3Ω, 5.0Ω, 7.7Ω, 10Ω, 33Ω, 50Ω, 77Ω, 100Ω, 330Ω, 47kΩ, (user-selectable) Capacitive: 50pF, 100pF, 150pF, 200pF, 250pF, 300pF, 350pF, 0.01μF (user-selectable)
HEIGHT
8.75″ (22.2 cm) – Control = 3.25″ (8.2 cm); Audio = 5.5″ (14 cm)
WIDTH
17.25″ (43.8 cm)
DEPTH
13″ (33 cm)
WEIGHT
60 lb (27 kg) Control = 25 lb (11 kg); Audio = 35 lb (16 kg)
PHONO INPUTS
Input Overload (phono): >100mV @1kHz (40dB gain); >10mV @1kHz (60dB gain)
COMMUNICATION AND CONTROL
Volume Control Range: 80.0dB
ANALOG AUDIO INPUTS
3 balanced (female XLR) stereo inputs; 4 single-ended (Mark Levinson-RCA) stereo inputs
ANALOG AUDIO OUTPUTS
1 balanced (male XLR) stereo main output; 1 single-ended (Mark Levinson-RCA) stereo main output; 2 single-ended (Mark Levinson-RCA) stereo record outputs
MAXIMUM OUTPUT LEVEL
16V – balanced (XLR) connectors; 8V – unbalanced (RCA) connectors
SIGNAL-TO-NOISE RATIO
Residual Noise: < 120dB (20Hz – 20kHz, input terminated,balanced)
GAIN
Gain (line-level stage): 0dB, +6dB, +12dB, or +18dB (user-selectable) — Gain (phono stage): +40dB, +60dB @1kHz (user-selectable) — Gain Resolution: 1.0dB increments up to 23.0dB on display (–57dB to –80dB); 0.1dB increments above 23.0dB on display (0dB to –57dB)
OUTPUT IMPEDANCE
20 ohms – balanced (XLR) connectors; 10 ohms – unbalanced (RCA) connectors
POWER REQUIREMENTS
Operating Voltage: 100V – 240VAC, 50Hz/60Hz
You must be logged in to post a review.
Nº52
DESCRIPTION
Reference Dual-Monaural Preamplifier
FREQUENCY RESPONSE
10Hz – 40kHz (±0.2dB)
FREQUENCY RESPONSE (PHONO)
±1dB (RIAA response)
INPUT IMPEDANCE
Input Impedance (line-level): 100k ohms — Input Impedance (phono): Resistive: 3.3Ω, 5.0Ω, 7.7Ω, 10Ω, 33Ω, 50Ω, 77Ω, 100Ω, 330Ω, 47kΩ, (user-selectable) Capacitive: 50pF, 100pF, 150pF, 200pF, 250pF, 300pF, 350pF, 0.01μF (user-selectable)
HEIGHT
8.75″ (22.2 cm) – Control = 3.25″ (8.2 cm); Audio = 5.5″ (14 cm)
WIDTH
17.25″ (43.8 cm)
DEPTH
13″ (33 cm)
WEIGHT
60 lb (27 kg) Control = 25 lb (11 kg); Audio = 35 lb (16 kg)
PHONO INPUTS
Input Overload (phono): >100mV @1kHz (40dB gain); >10mV @1kHz (60dB gain)
COMMUNICATION AND CONTROL
Volume Control Range: 80.0dB
ANALOG AUDIO INPUTS
3 balanced (female XLR) stereo inputs; 4 single-ended (Mark Levinson-RCA) stereo inputs
ANALOG AUDIO OUTPUTS
1 balanced (male XLR) stereo main output; 1 single-ended (Mark Levinson-RCA) stereo main output; 2 single-ended (Mark Levinson-RCA) stereo record outputs
MAXIMUM OUTPUT LEVEL
16V – balanced (XLR) connectors; 8V – unbalanced (RCA) connectors
SIGNAL-TO-NOISE RATIO
Residual Noise: < 120dB (20Hz – 20kHz, input terminated,balanced)GAIN
Gain (line-level stage): 0dB, +6dB, +12dB, or +18dB (user-selectable) -- Gain (phono stage): +40dB, +60dB @1kHz (user-selectable) -- Gain Resolution: 1.0dB increments up to 23.0dB on display (–57dB to –80dB); 0.1dB increments above 23.0dB on display (0dB to –57dB)OUTPUT IMPEDANCE
20 ohms – balanced (XLR) connectors; 10 ohms – unbalanced (RCA) connectorsPOWER REQUIREMENTS
Operating Voltage: 100V – 240VAC, 50Hz/60Hz
