Pass Labs XS Phono

$45,000.00

0% – 3 Year Financing Available!!

Pass Labs Xs Phono Preamplifier

The Xs Phono preamplifier represents an all-out assault on the state-of-art in Vinyl and the most intensive and difficult design effort made at Pass Laboratories. The result is music that emerges from a quieter background and blooms into a richer, more precise soundstage.

Pass Labs
Categories: , Brand:

Product Description

PASS LABS BROCHURE – CLICK TO VIEW BROCHURE

0% – 3 Year Financing Available!!

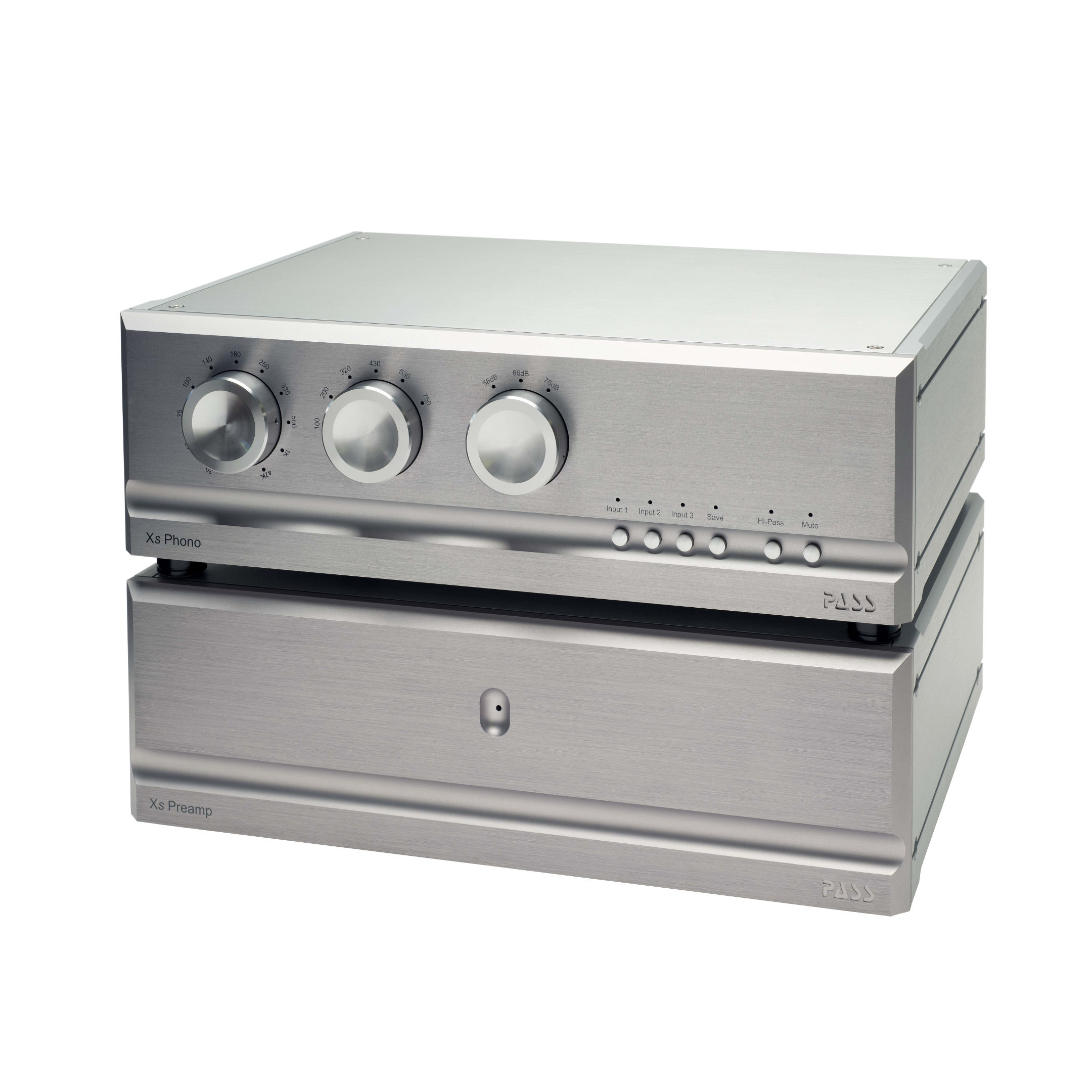

Pass Labs Xs Phono Preamplifier

The Xs Phono preamplifier represents an all-out assault on the state-of-art in Vinyl and the most intensive and difficult design effort made at Pass Laboratories. The final product of this massive effort extracts the utmost performance from a simple topology  and operates with the extremely small and delicate signals coming from today’s wide variety of phono cartridges. The result is music that emerges from a quieter background and blooms into a richer, more precise soundstage.

Ultra High-End Phono

When we began development of the Xs power amplifier five years ago, we knew that we would also need a companion piece.

We were given “carte blanche” on the design and an unlimited budget, the result of this is the Xs Preamp.

True “dual-mono” design
only component shared between channels other than casework, being the AC power connection to house power

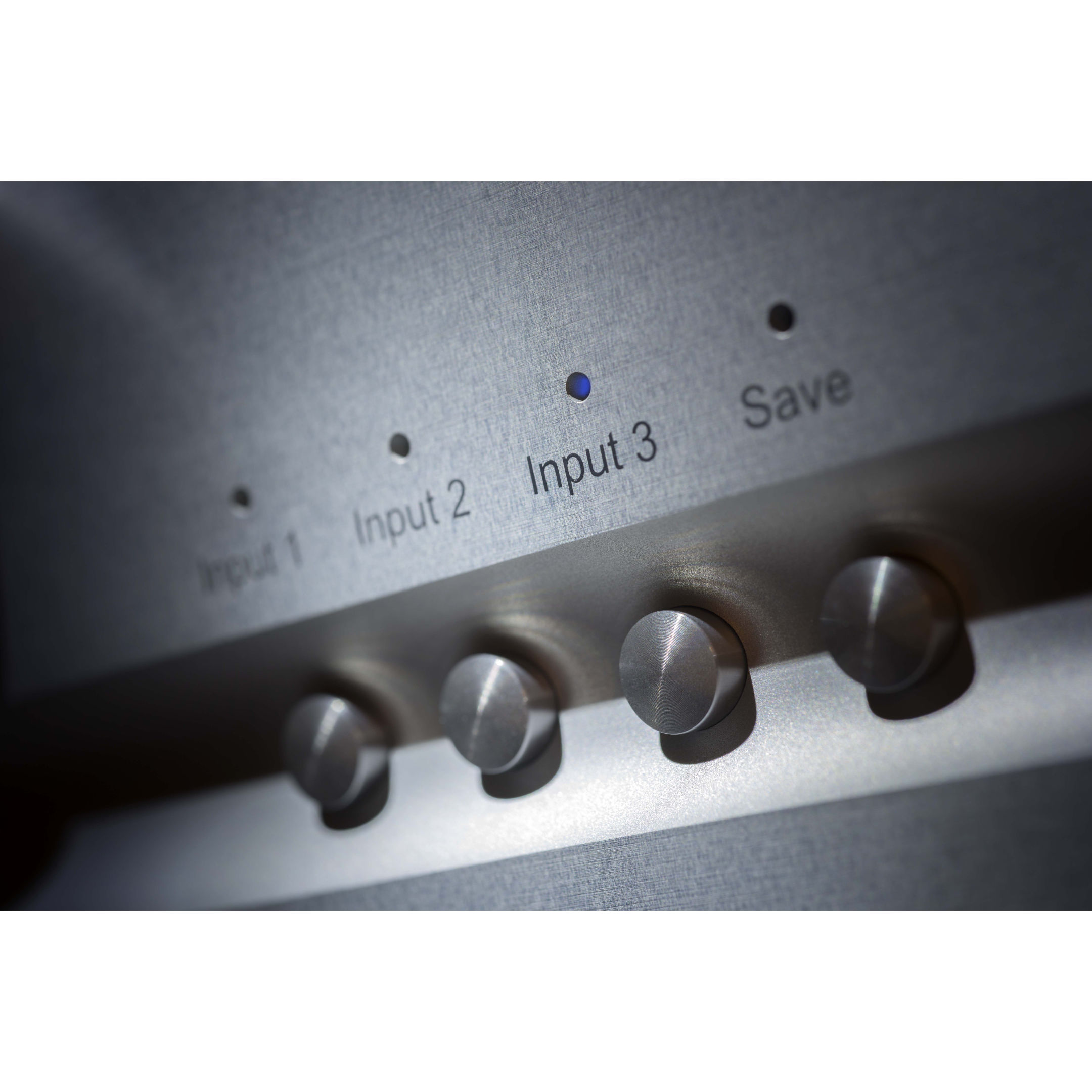

Control section
includes its own regulated power supply

Minimal noise

Negligible channel to channel “cross-talk”



SPECIFICATIONS

Gain  =  56, 66, 76dB
RIAA response  =  plus/minus .1 dB 20-20 KHz
RIAA response  =  plus/minus .1 dB 20-20 KHz
Distortion  =  < .005 % THD @ 1mV MC input
Maximum Output  =  38 volts rms balanced @ .1% THD
Output Impedance  =  150 SE / 150 Balanced

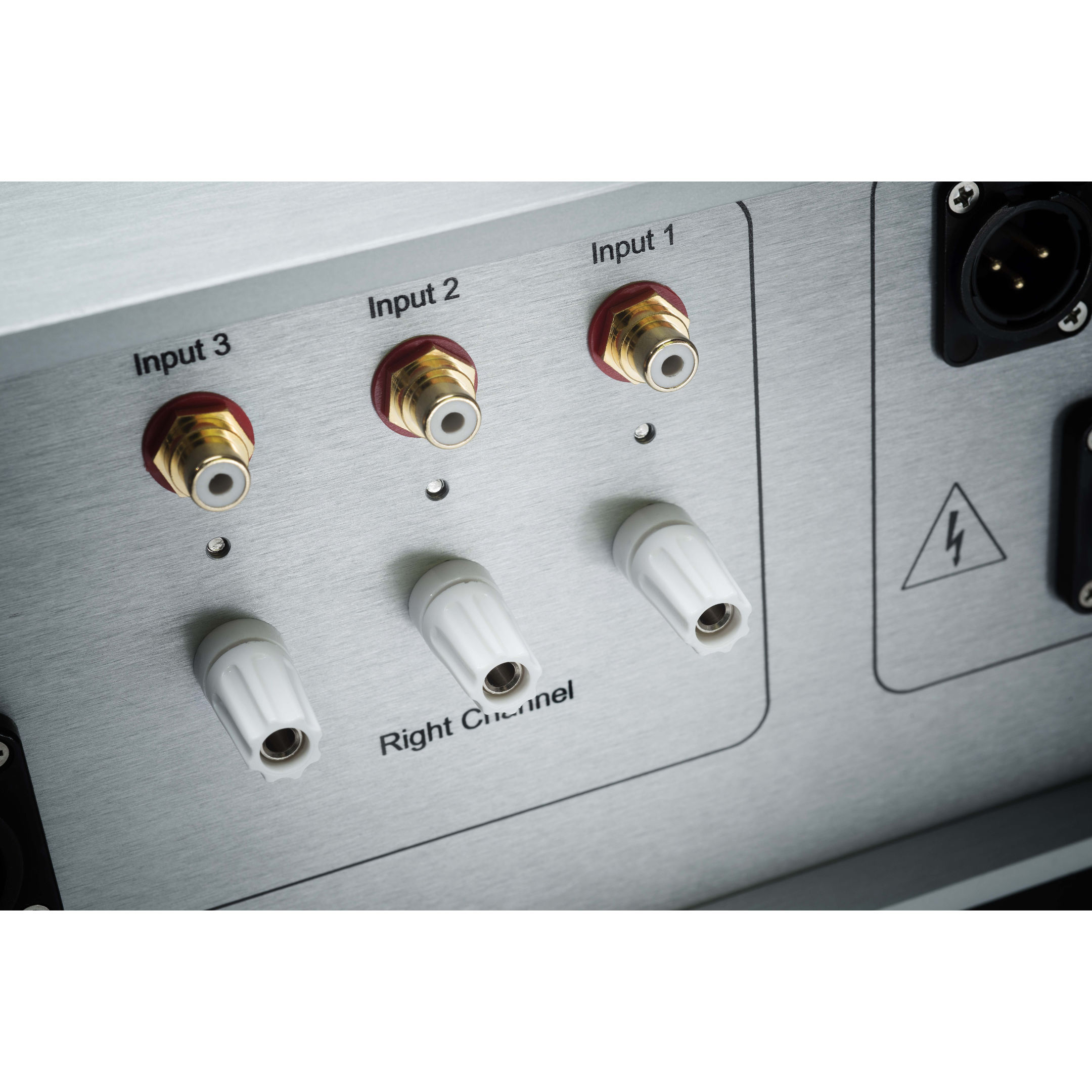

Input Impedance  =  30 ohm – 47K ohm any input
Power consumption (Watts)  =  55
Number of chassis  =  2
Dimensions, each chassis  =  19”W x 14”D x 6.25”H
Weight (Lbs)  =  80
Ship Box Dim  =  24 x 19 x 23
Shipping Weight  =  90

Reviews

There are no reviews yet.

Be the first to review “Pass Labs XS Phono”

Your email address will not be published. Required fields are marked *

SPECIFICATIONS
Pass Labs Xs Phono Preamplifer

Gain  =  56, 66, 76dB
RIAA response  =  plus/minus .1 dB 20-20 KHz
RIAA response  =  plus/minus .1 dB 20-20 KHz
Distortion  =  < .005 % THD @ 1mV MC input Maximum Output  =  38 volts rms balanced @ .1% THD Output Impedance  =  150 SE / 150 Balanced Input Impedance  =  30 ohm - 47K ohm any input Power consumption (Watts)  =  55 Number of chassis  =  2 Dimensions, each chassis  =  19”W x 14”D x 6.25”H Weight (Lbs)  =  80 Ship Box Dim  =  24 x 19 x 23 Shipping Weight  =  90

PASS LABS BROCHURE – CLICK TO VIEW BROCHURE
