Acoustic Signature Typhoon NEO
$17,995.00

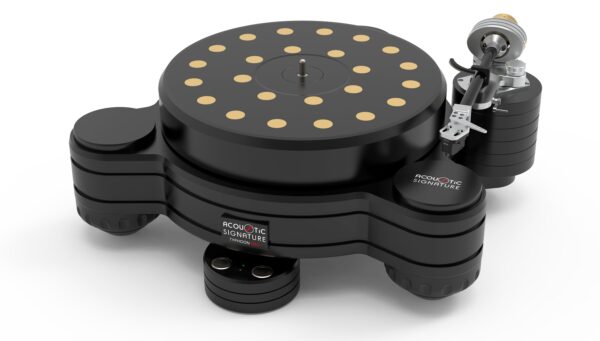

Acoustic Signature Typhoon NEO Turntable
0% Financing Available for 48 Months!!
The overall performance of the Acoustic Signature Typhoon NEO is at a level that will beat some of the world’s best and much more expensive turntables.
Product Description
Acoustic Signature Typhoon NEO Turntable
Price: $17,595.00 (Deck only)
0% Financing Available for 48 Months!!
The Typhoon NEO knows almost no compromises! Prepared for 3 tonearms and equipped with the second-highest expansion stages of our newest drive system and chassis technologies, this high mass turntable will produce high audiophile waves – in the most positive sense. It is absolutely clear to us: The overall performance of the Acoustic Signature Typhoon NEO is at a level that will beat some of the world’s best and much more expensive turntables.
Features:
- 3 integrated, completely insulated AC-motors
- External digital motor controller DMC-20 with super stable multi-voltage power supply and innovative AVC technology level 2 (Automatic Vibration Control)
- Ultraprecise, extremely rigid and robust DTD® bearing with diamond-coated spindle (Dura Turn Diamond® Bearing)
- Exclusive Silencer technology for effective reduction of platter vibration with 24 Silencer modules
- Massive aluminum chassis with CLD technology (Constraint Layer Damping) for significantly improved resonance behavior
- RPM-regulated double belt drive with speed fine adjustment for the subplatter
- 3-point setup with special gel-damped feet
- Prepared for up to 3 tonearms
- Up to 3 adjustable arm boards for 9 to 12 inch tonearms
- Flexible placeable control panel
- 15-year warranty (with registration)
Stormy Siblings
The basic design approach unites the Tornado NEO, Hurricane NEO and Typhoon NEO turntables. All three models are subplatter driven and have the new DTD® bearing in common. But the further features and technology levels of the three high mass turntables differ aside these characteristics:
Technical Data
| Characteristic | Feature |
| AC-motors: | 3 |
| Drive system: | RPM-regulated double belt drive with speed fine adjustment for the subplatter |
| AVC: | Level 2 |
| Speed range: | 33 1/3 RPM and 45 RPM |
| Power adapter: | External digital motor controller DMC-20 with super stable power supply |
| (100 V – 260 V AC, 50 Hz.) | |
| Optional: 24 V DC Input via XLR 5-pole connector | |
| Control panel: | External with flexible placement |
| Bearing: | High-precision Dura Turn Diamond® bearing |
| Tone arm base: | Up to 3 adjustable armboards |
| 1 designed to fit to customers tonearm | |
| 2 more armbases mountable (sold separately) | |
| Tone arm compatibility: | 9 to 12 inch |
| Maximum number of tone arms: | 3 |
| Platter: | Aluminum anodized |
| (Ø 310 x 50 mm / 13 kg), | |
| with Silencer modules | |
| Silencer: | 24 |
| Chassis: | 75 mm aluminum alloy |
| Feet: | 3 height-adjustable gel-damped aluminum feet |
| Dimensions (WxDxH): | 450 x 460 x 190 mm |
| Weight: | 35 kg |
Available Finishes
| Chassis and platter: | Black (anodized), |
| silver (anodized) or | |
| bi-color | |
| Silencer: | Polished brass, |
| optional: 24 carat gold-plated or polished chrome |
Package Contents
- Typhoon NEO chassis
- Platter
- Subplatter
- Armbase
- External power supply DMC-20
- External control panel
- Power cord
- Patch cable RJ45 blue
- Patch cable RJ45 red
- 3 drive belts
- Armbase wrench
- Tool set
- Leather mat
- Gloves
- Instruction manual
Warranty
** 15 year warranty for registered products manufactured after October 2020
You must be logged in to post a review.
Acoustic Signature Typhoon NEO Turntable
Specifications
AC-motors: 3
Drive system: RPM-regulated double belt drive with speed fine adjustment for the subplatter
AVC: Level 2
Speed range: 33 1/3 RPM and 45 RPM
Power adapter: External digital motor controller DMC-20 with super stable power supply (100 V – 260 V AC, 50 Hz.) Optional: 24 V DC Input via XLR 5-pole connector
Control panel: External with flexible placement
Bearing: High-precision Dura Turn Diamond® bearing
Tone arm base: Up to 3 adjustable armboards, 1 designed to fit to customers tonearm, 2 more armbases mountable (sold separately)
Tone arm compatibility: 9 to 12 inch
Maximum number of tone arms: 3
Platter: Aluminum anodized (Ø 310 x 50 mm / 13 kg), with Silencer modules
Silencer: 24
Chassis: 75 mm aluminum alloy
Feet: 3 height-adjustable gel-damped aluminum feet
Dimensions (WxDxH): 450 x 460 x 190 mm
Weight: 35 kg
